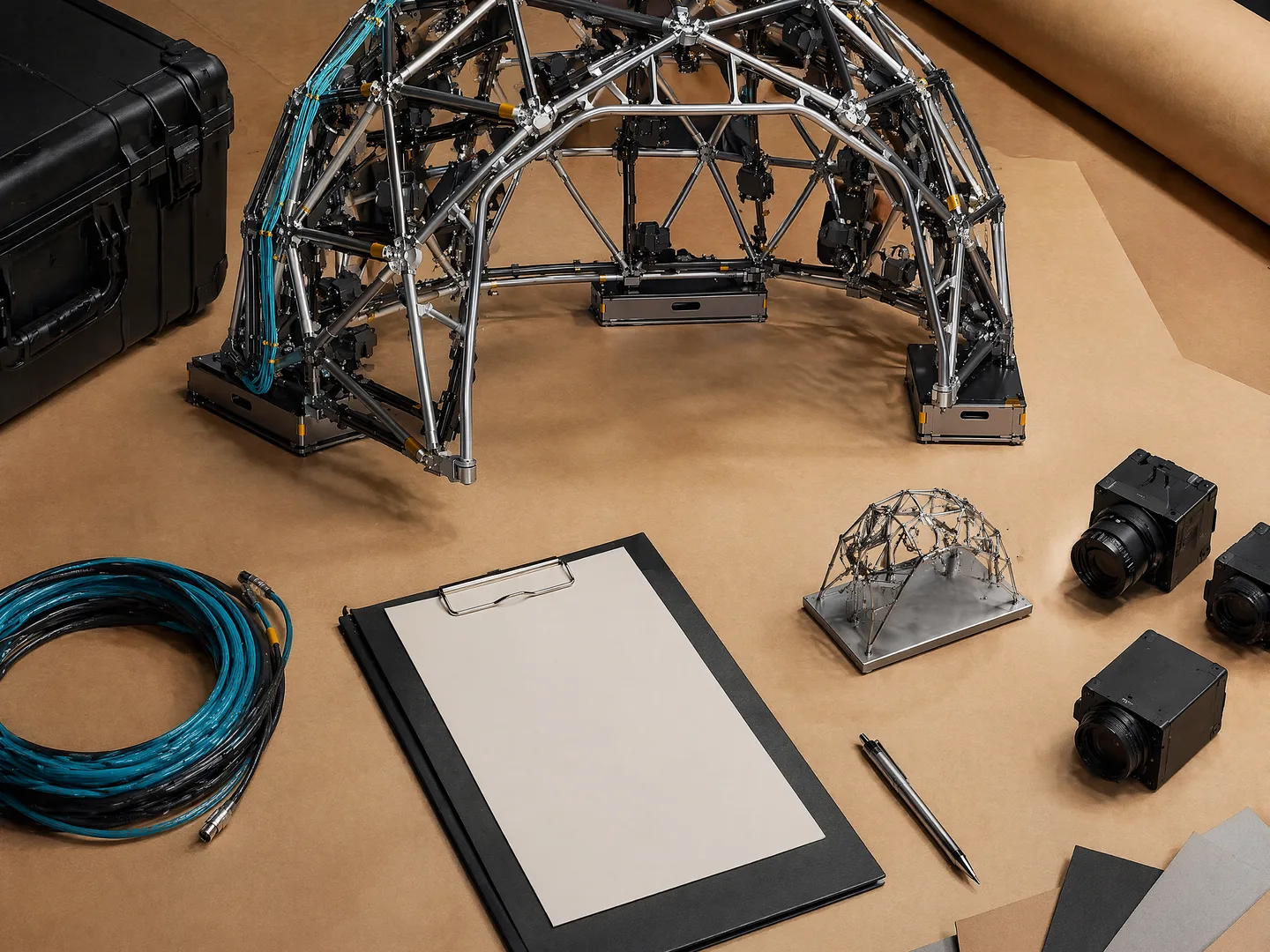

01 / Brief
Translate the capture need into a representative structure workflow.
Purpose, camera layout, geometry, cable route, access and transport are recorded without assigning a customer identity.
Projects / representative concept workflow

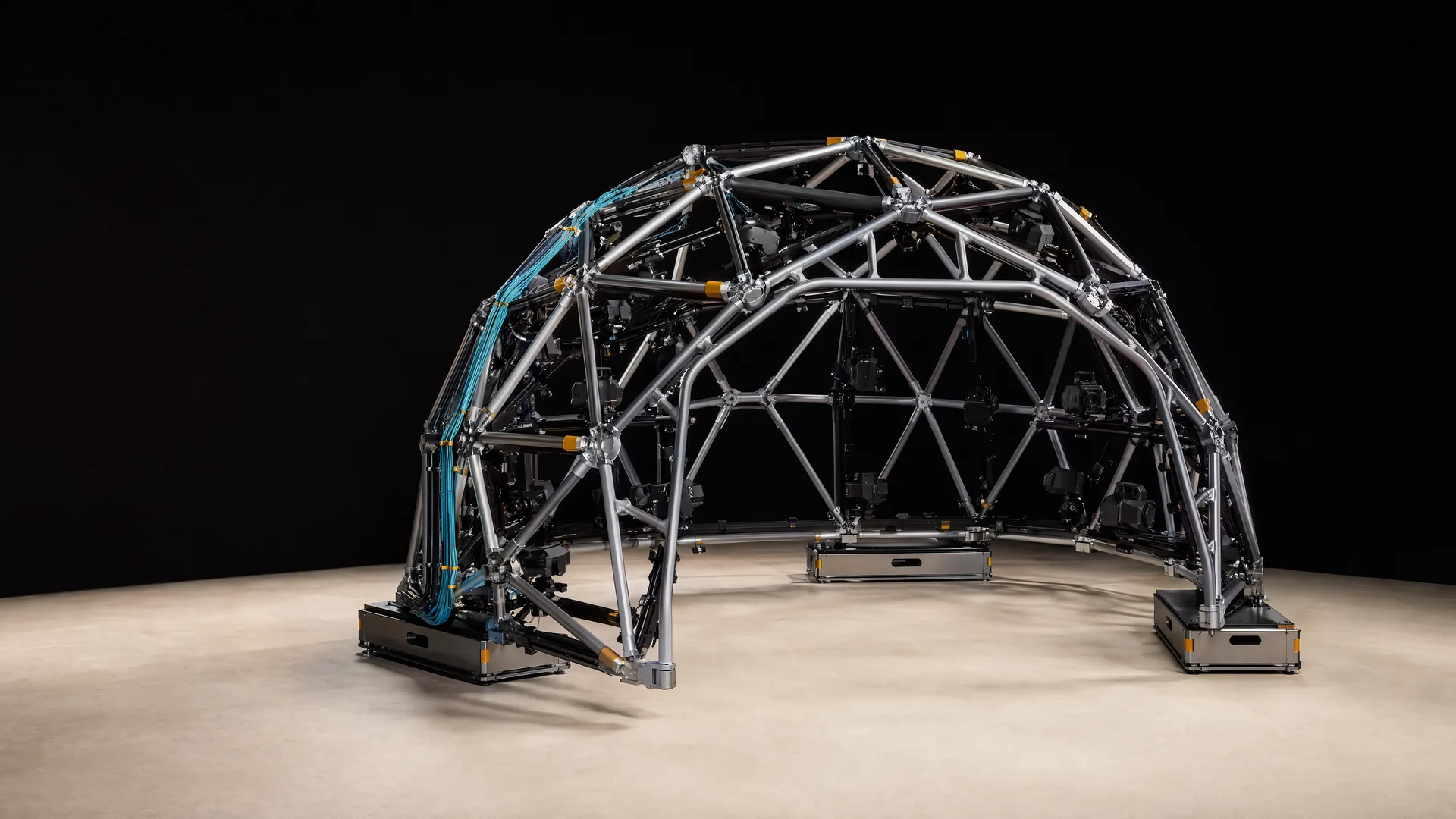

A portable surround array built to open, travel and return to shape.
This representative configuration shows how one structure can move from brief to frame, service access, disassembly, packing and restored handoff.
Generated representative configuration. It is not a named customer project, documentary evidence or proof of a specific load, dimension, setup time or capture result.
One workflow / seven states
Keep the same structure visible through the whole handoff.
This representative concept workflow illustrates a delivery method without inventing a customer, location or verified outcome.

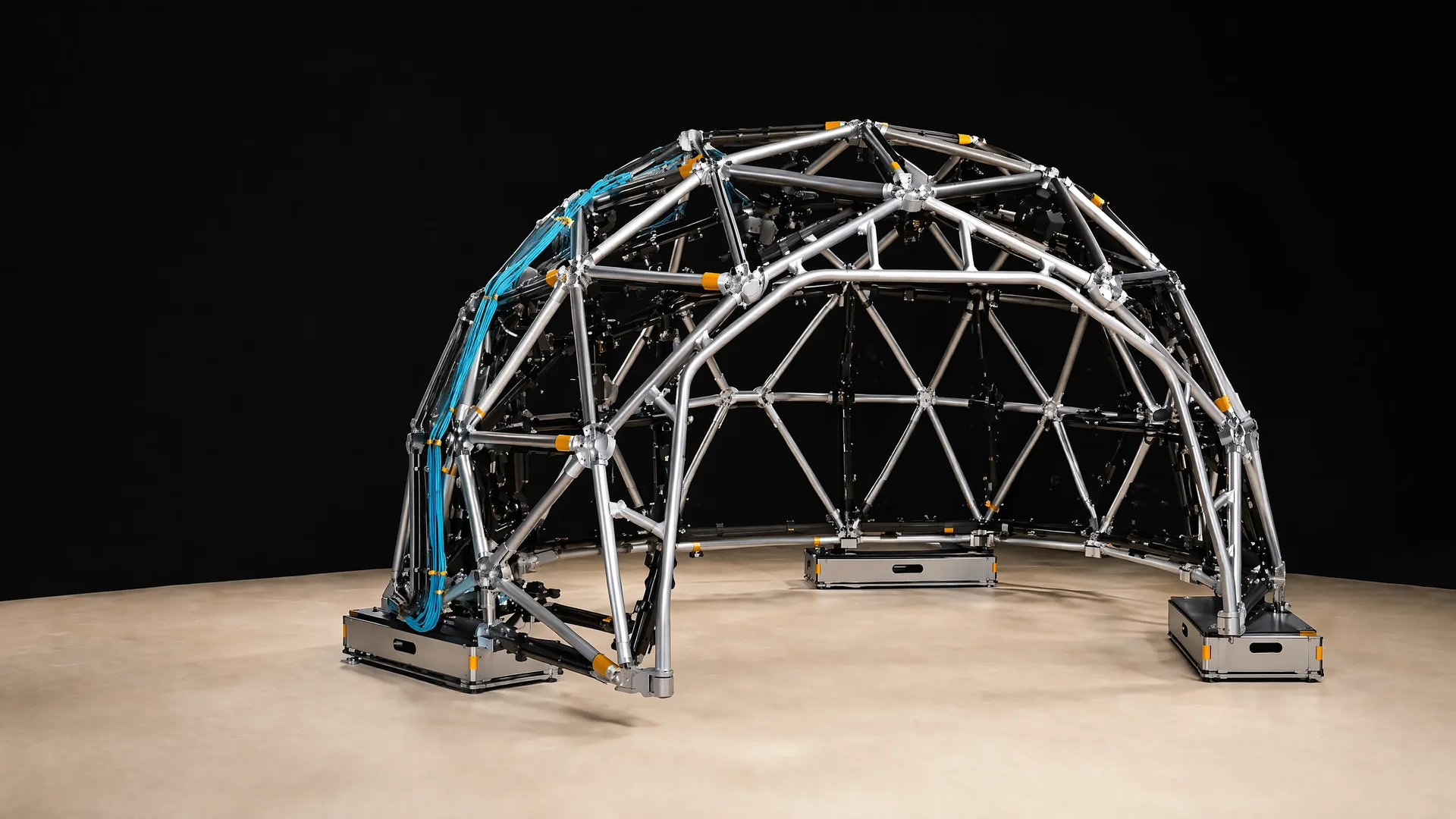

02 / Structure
Confirm the same frame language before cameras are integrated.
The open-front geodesic dome, bases, rails and service bay stay visible as one system.

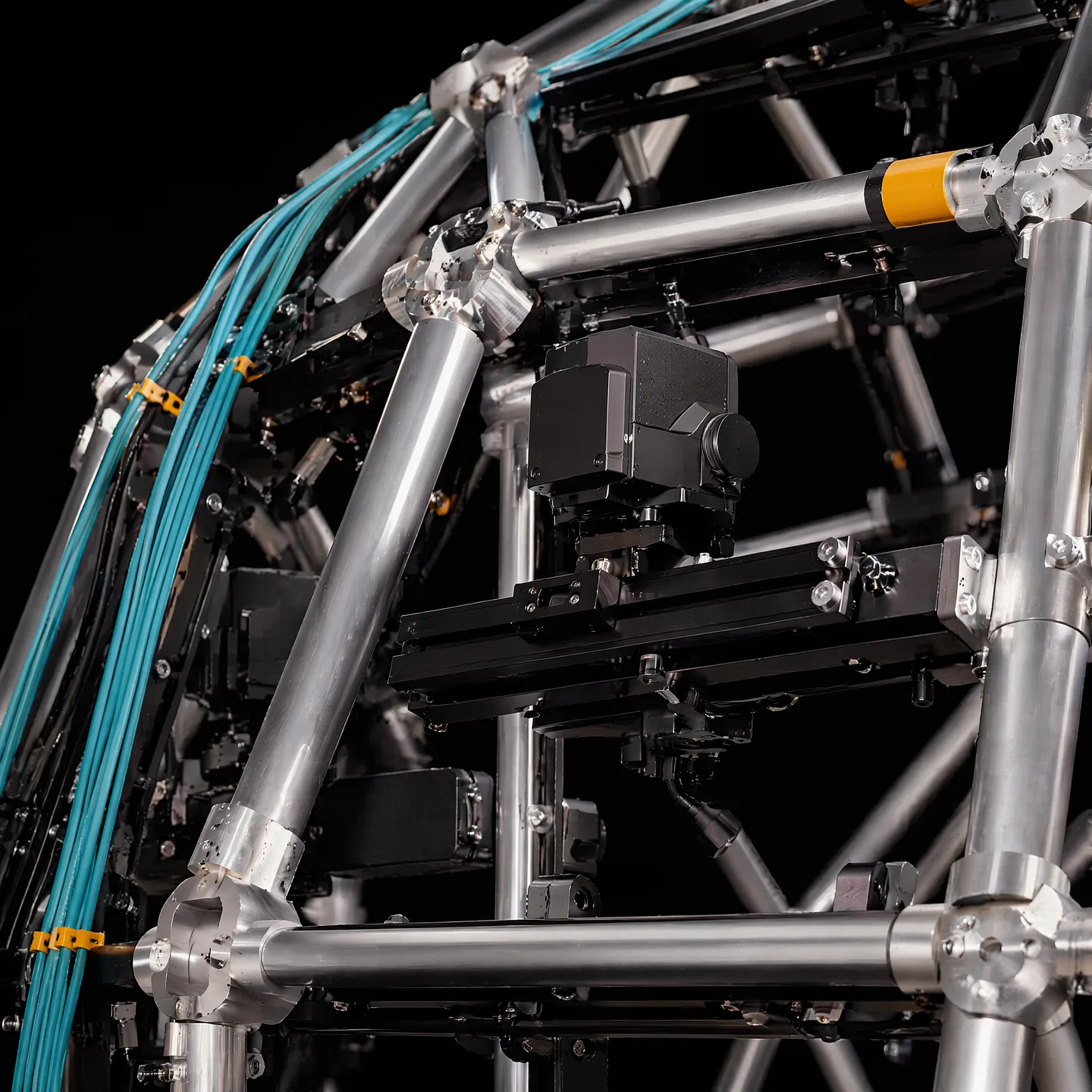

03 / Nodes and cable
Resolve the camera interface and rear-left cable spine.
Close detail supports the same silver members, black rails, amber locators and cyan route.

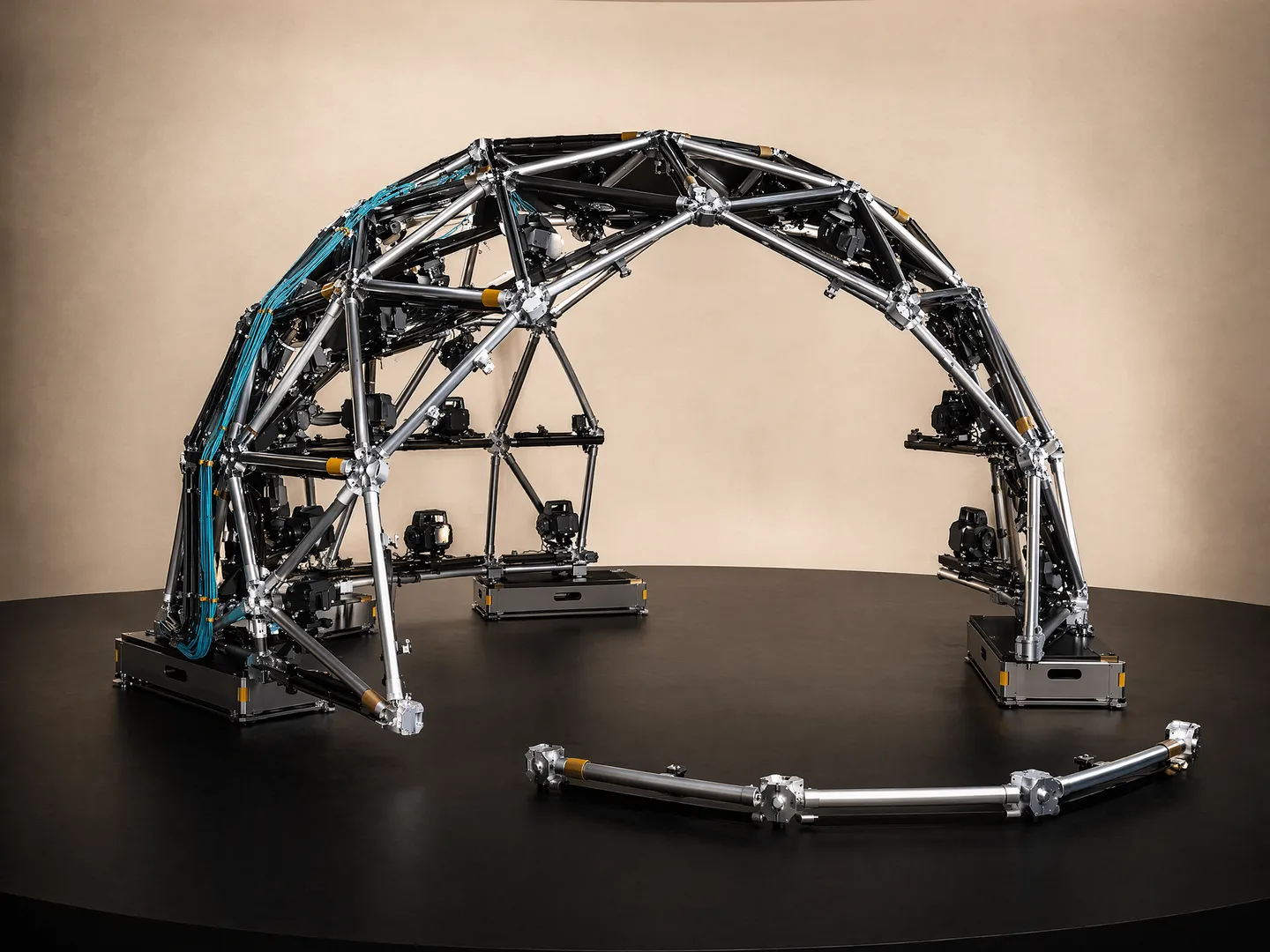

04 / Service bay
Open the front segment without changing the dome identity.
The service route remains part of the planned frame rather than an improvised gap.

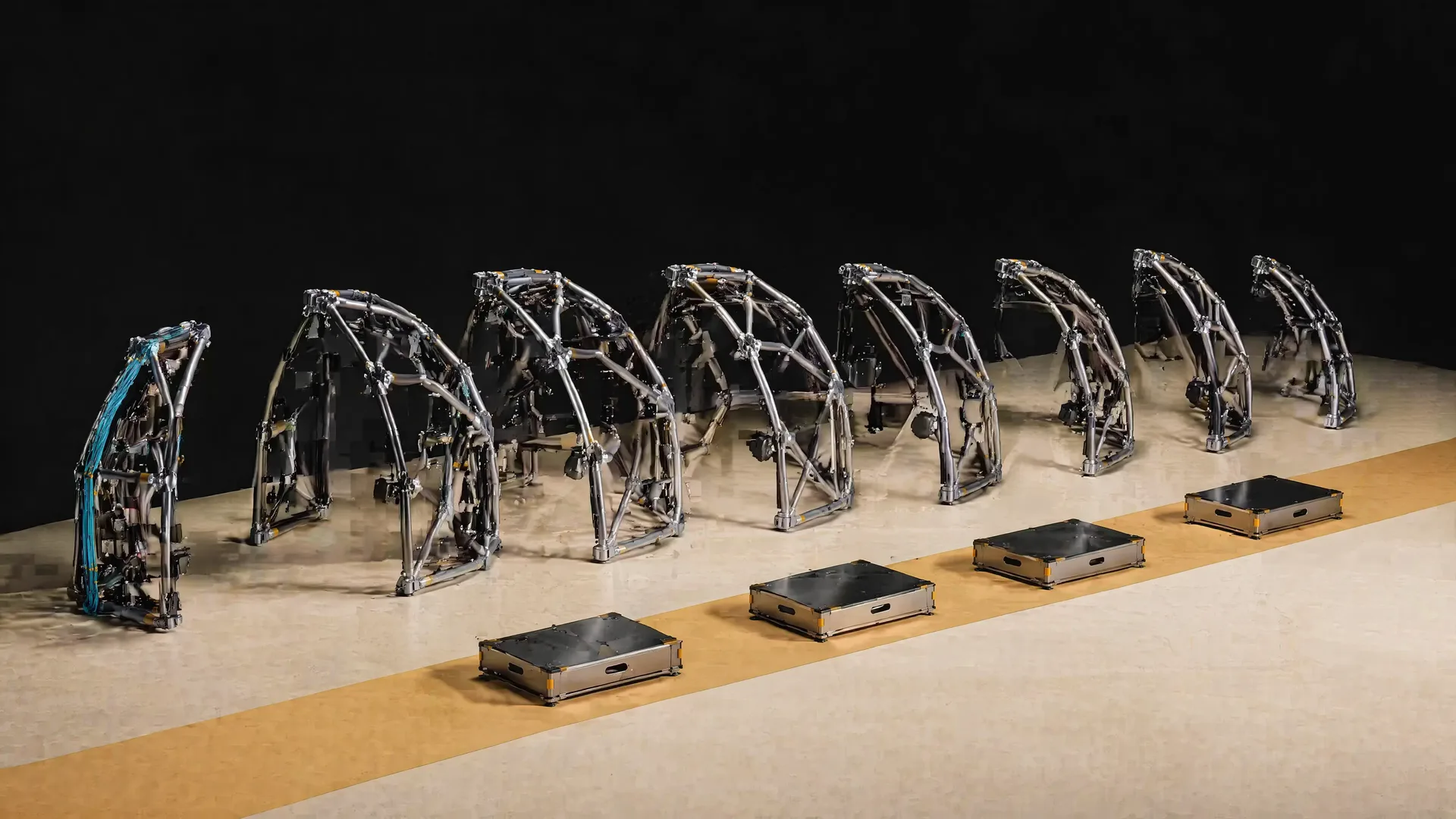

05 / Separation
Break the same geometry into repeatable curved modules.
Sections, bases and hardware remain connected to a restoration sequence.

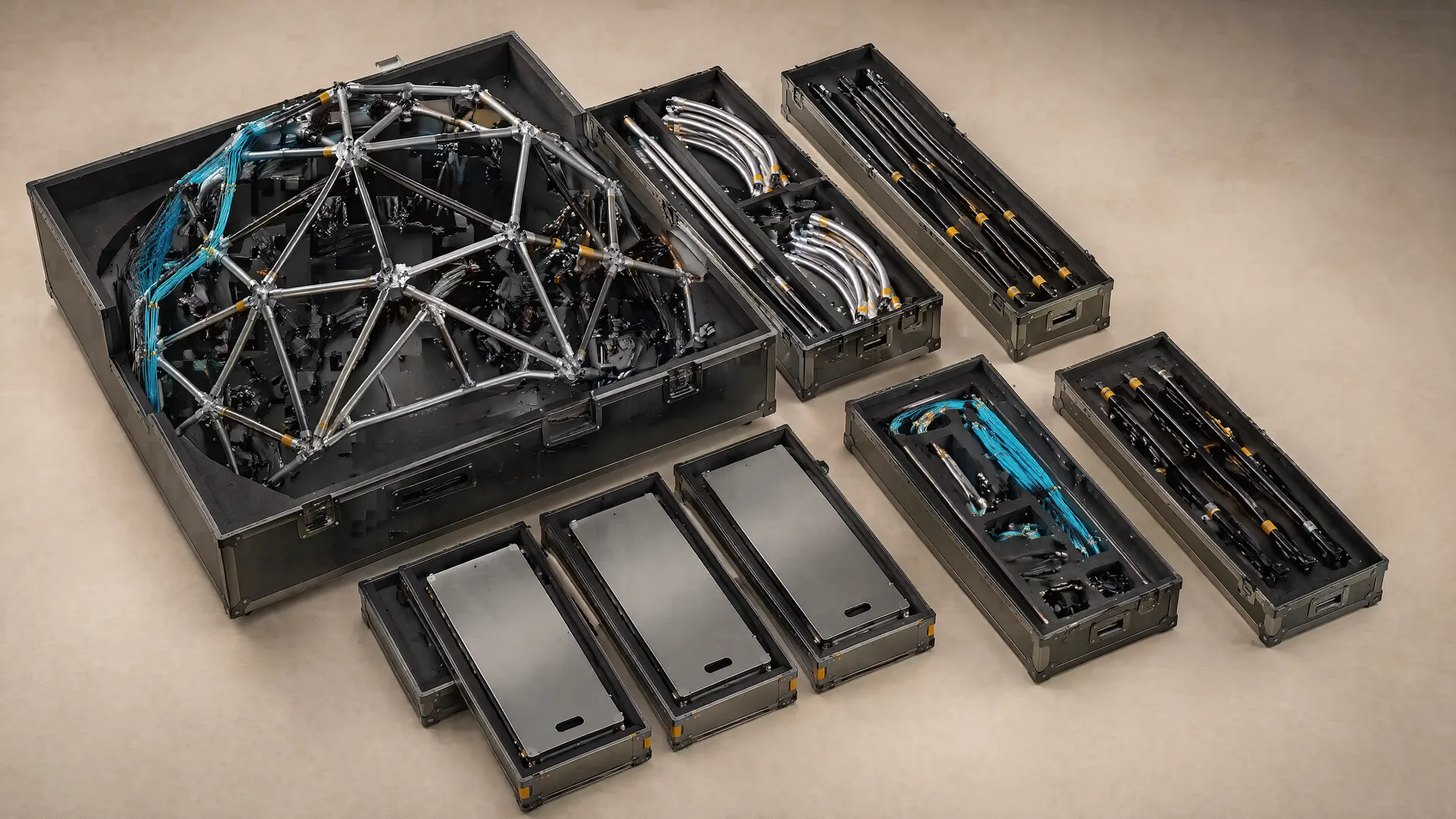

06 / Packing
Nest the same modules into fitted cases.
Protected frame members, rails, cables and base components remain grouped.

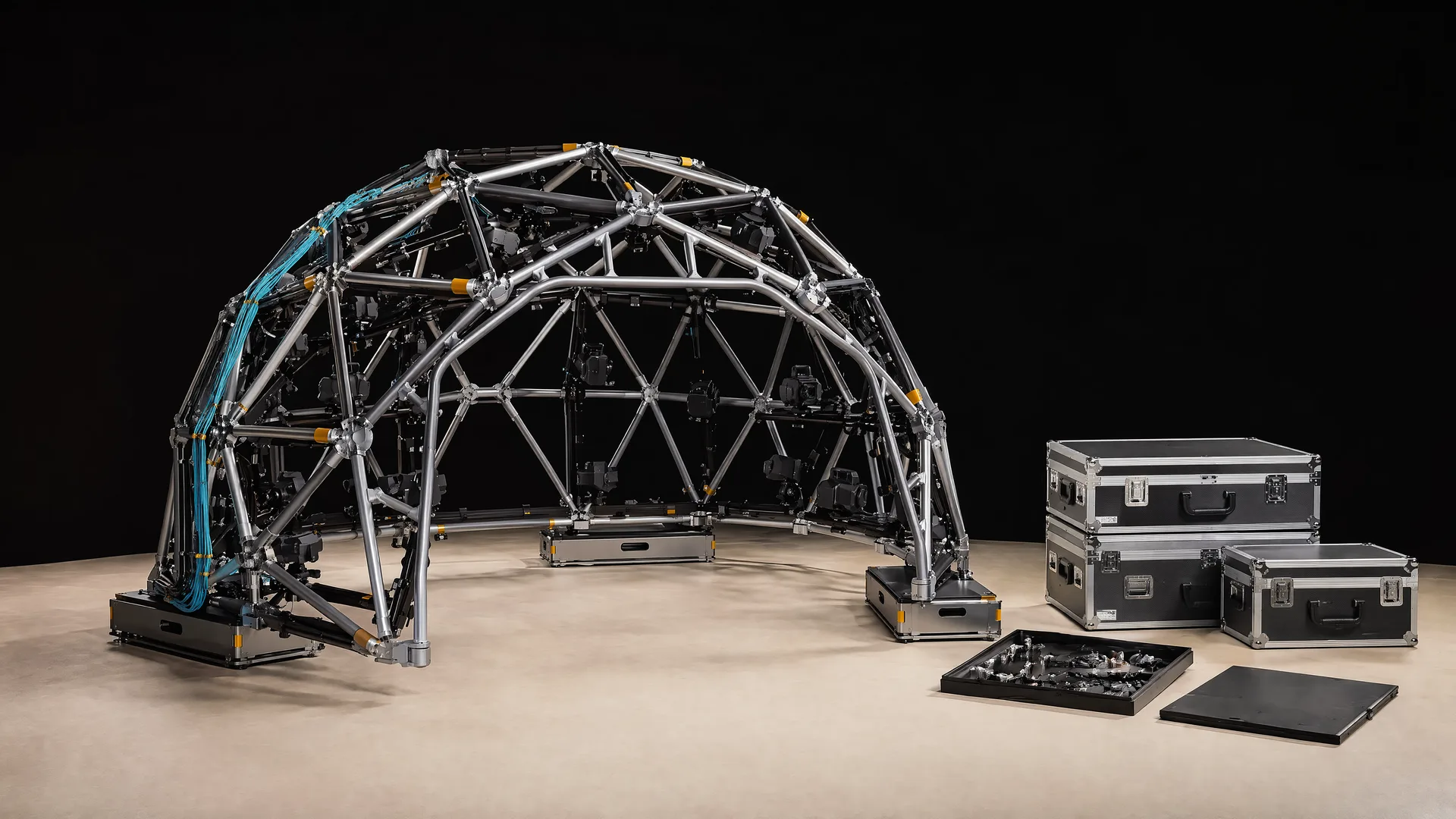

07 / Handoff
Restore the same frame beside the empty cases.
The final image closes the sequence without claiming a completed customer outcome.
Representative, not documentary
The sequence explains the product boundary, not a customer claim.
Exact frame geometry, camera count, payload, stiffness, site condition, packing volume and restoration method are confirmed for each project.
