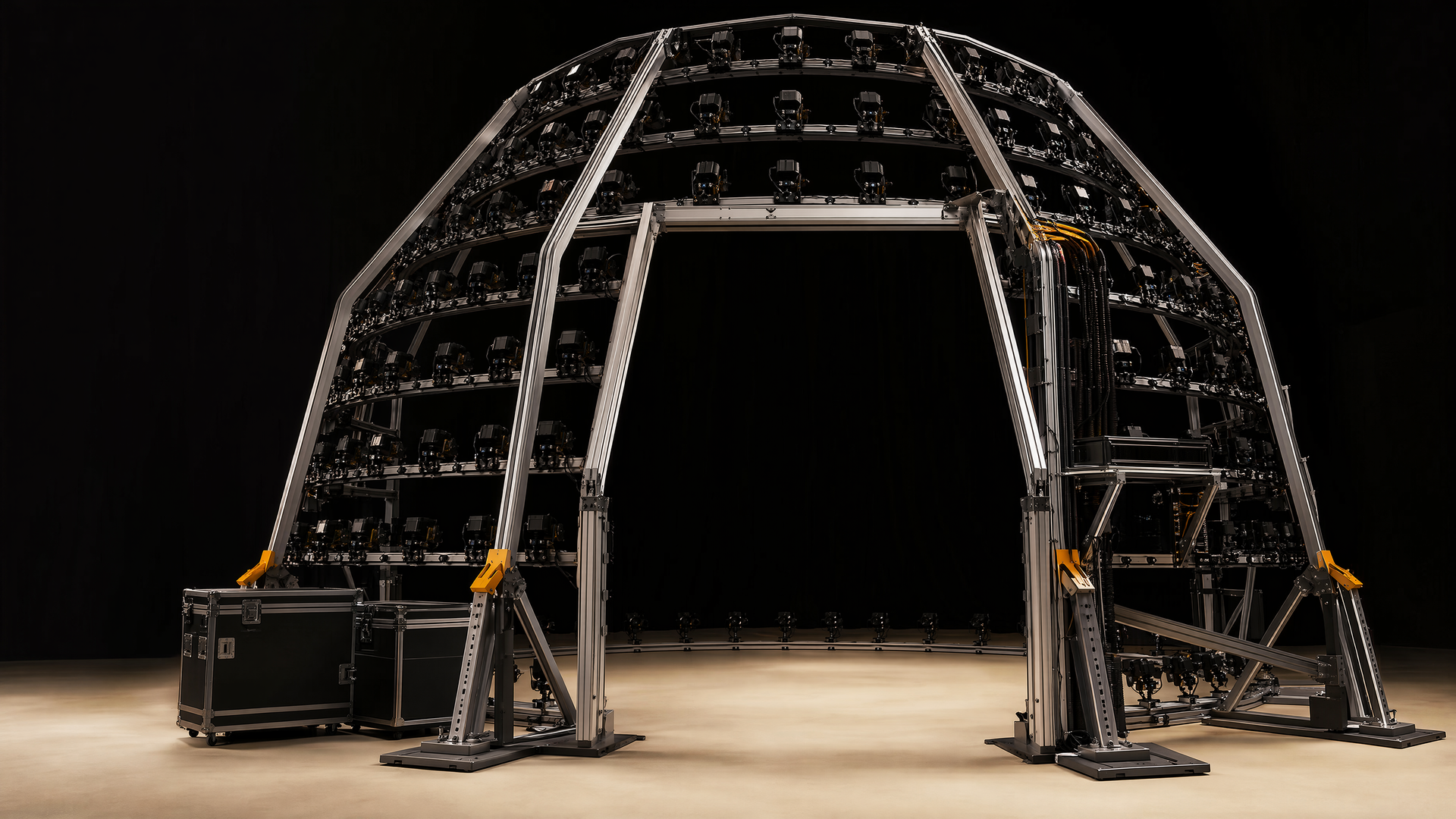

Modular camera array structures for 3D, volumetric and high-speed capture. Representative StelMount structure

Modular camera array structures

Modular camera array structures for 3D, volumetric and high-speed capture.

Configured around your camera count, capture geometry, cable plan and transport requirements.

Plan your arrayExplore systems

Representative configuration. Exact dimensions, loads, nodes, access and support scope are confirmed for each project.

Articles / Complete index

Read every guide in a stable order.

2 articles, organized for a quick first answer and a deeper technical handoff.

Open Articles
ARCRINGDOMEGRIDTUNNELMOBILE

01 / Structure families

Choose the geometry. Configure the frame.

Six reusable structure families cover a wide range of capture envelopes without turning the offer into fixed retail models.

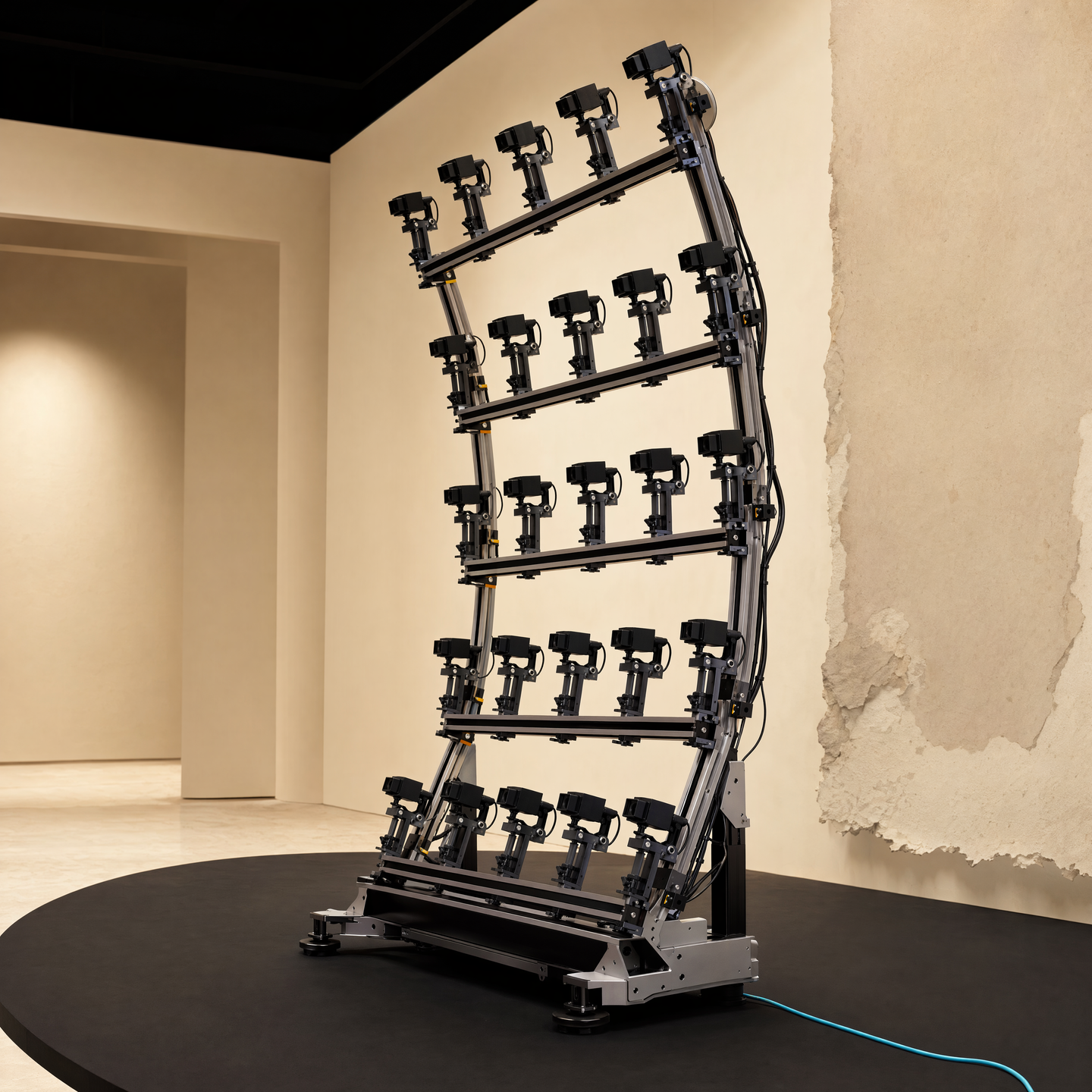

Representative multi-level ARC camera-array structure

ARC

Surround a moment, not the whole room.

Single or multi-level curved arrays for time-slice, high-speed and directed capture.

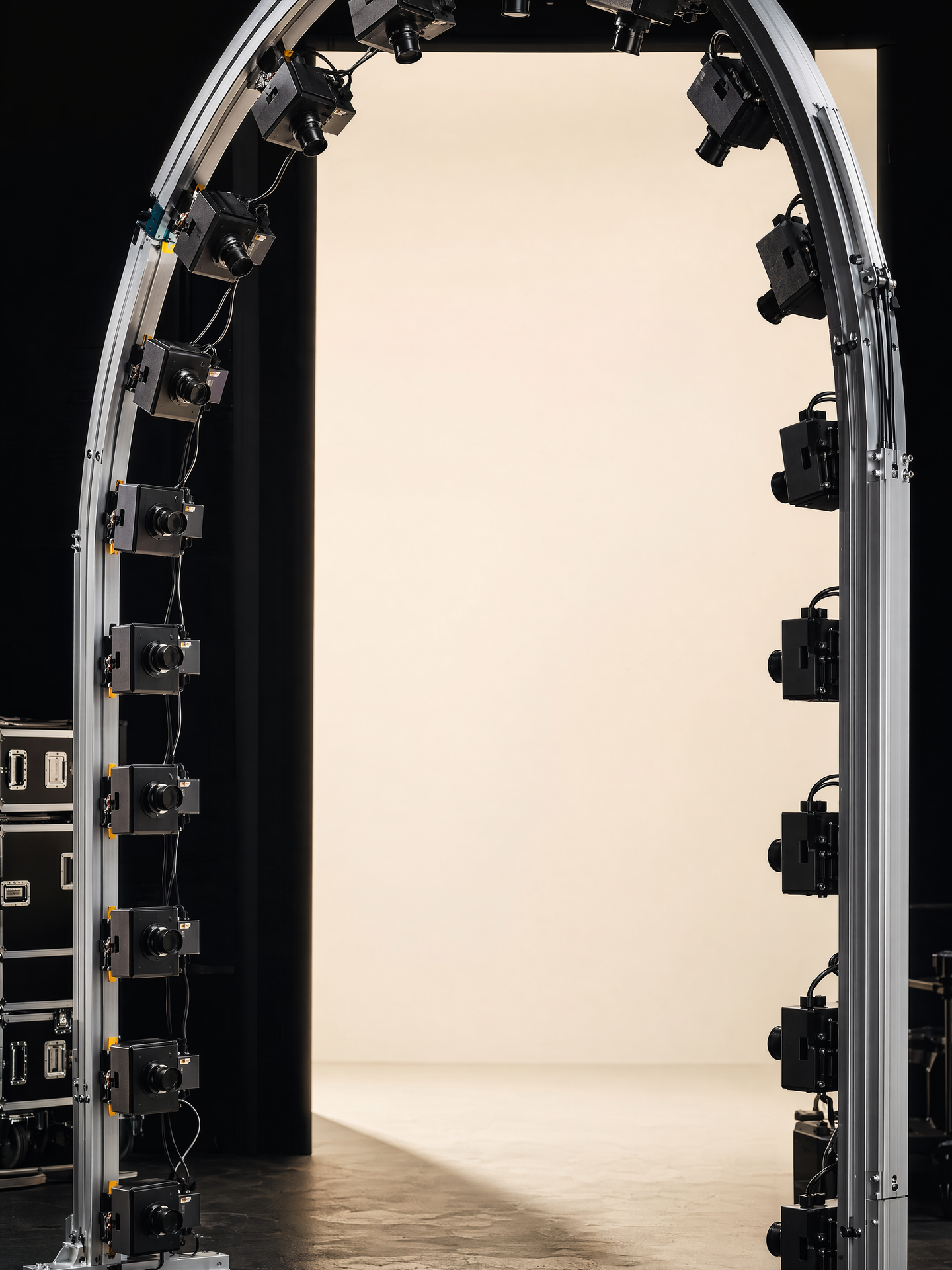

Representative walk-in RING camera-array structure

RING

Close the orbit and keep access.

Segmented full rings with a removable entrance and service-aware node placement.

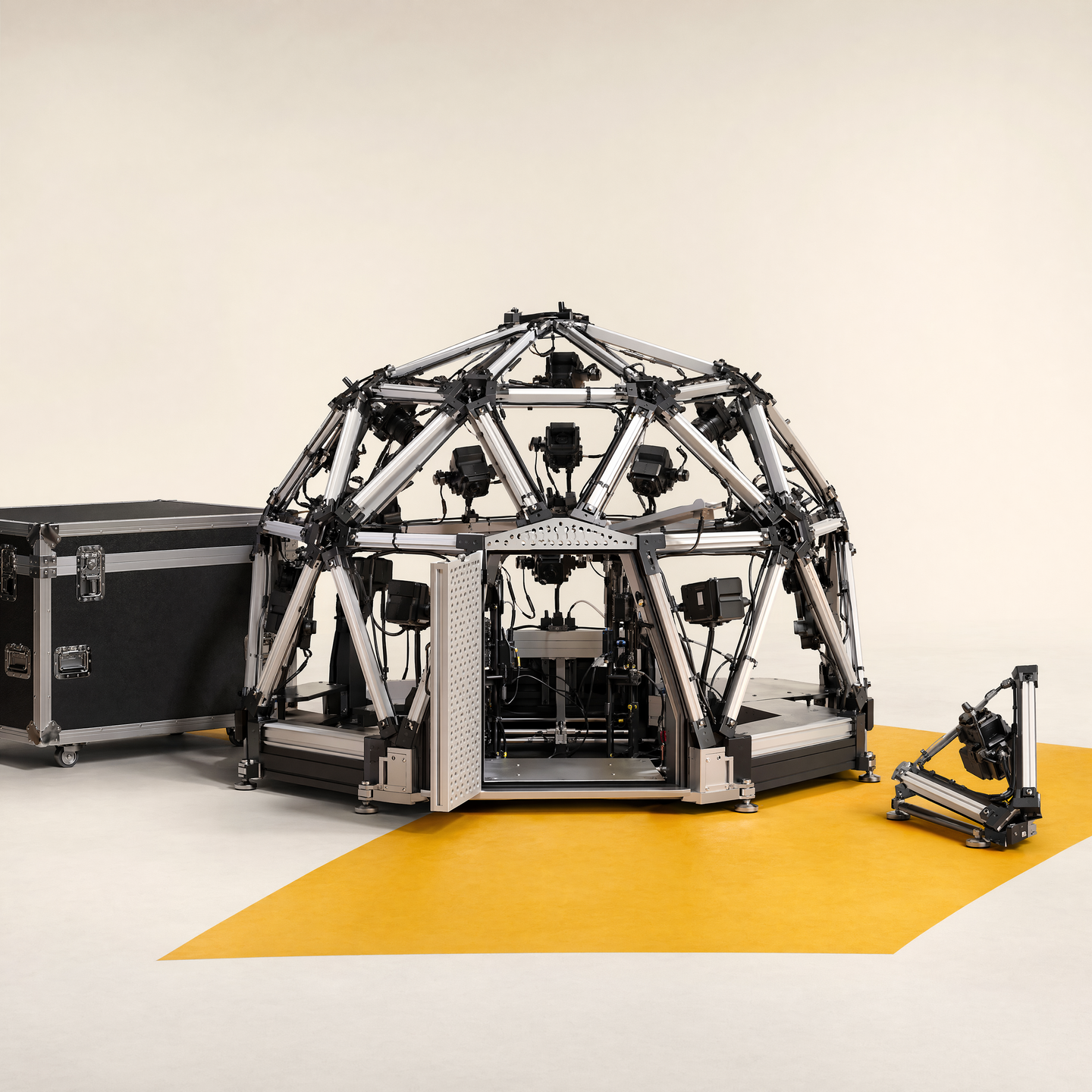

Representative portable DOME camera-array structure

DOME

Build a portable capture volume.

Multi-tier and geodesic structures for body, face and volumetric capture.

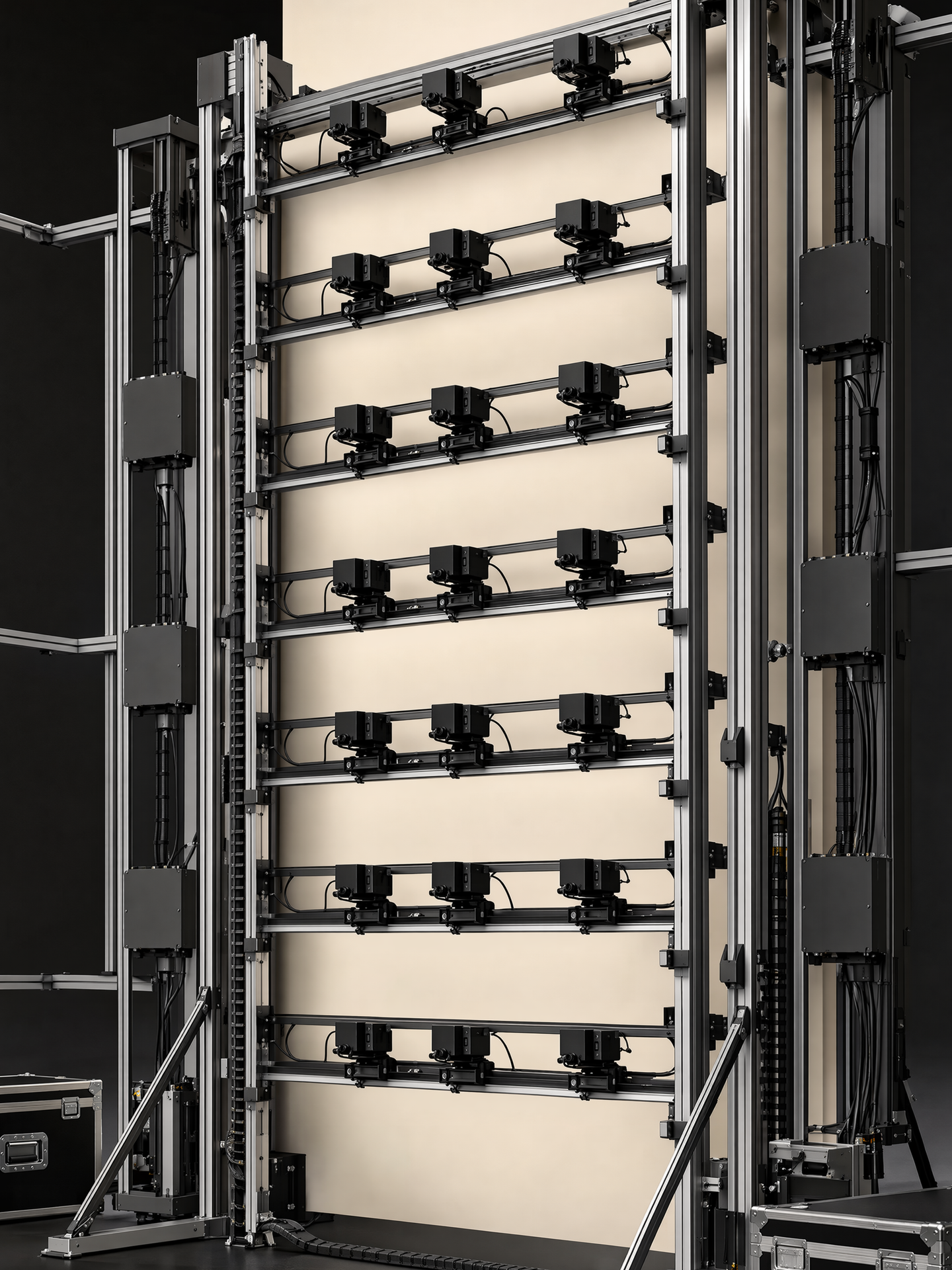

Representative modular GRID camera-array wall

GRID

Put cameras on a plane.

Wall, ceiling and perimeter grids with sliding rails and managed cable paths.

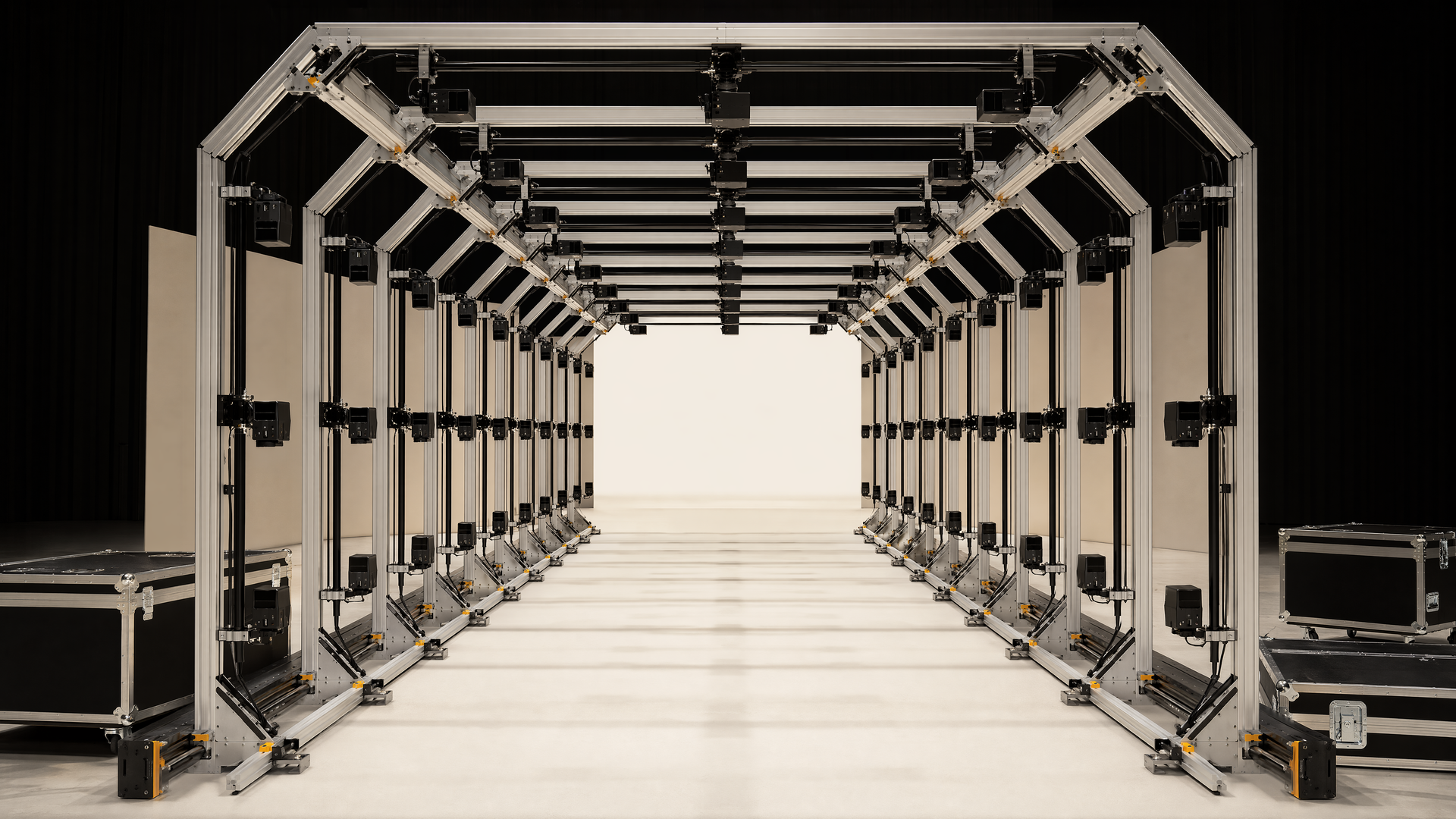

Representative empty TUNNEL camera-array structure

TUNNEL

Create a pass-through volume.

Repeated portal frames for people, objects and vehicle-scale clay targets.

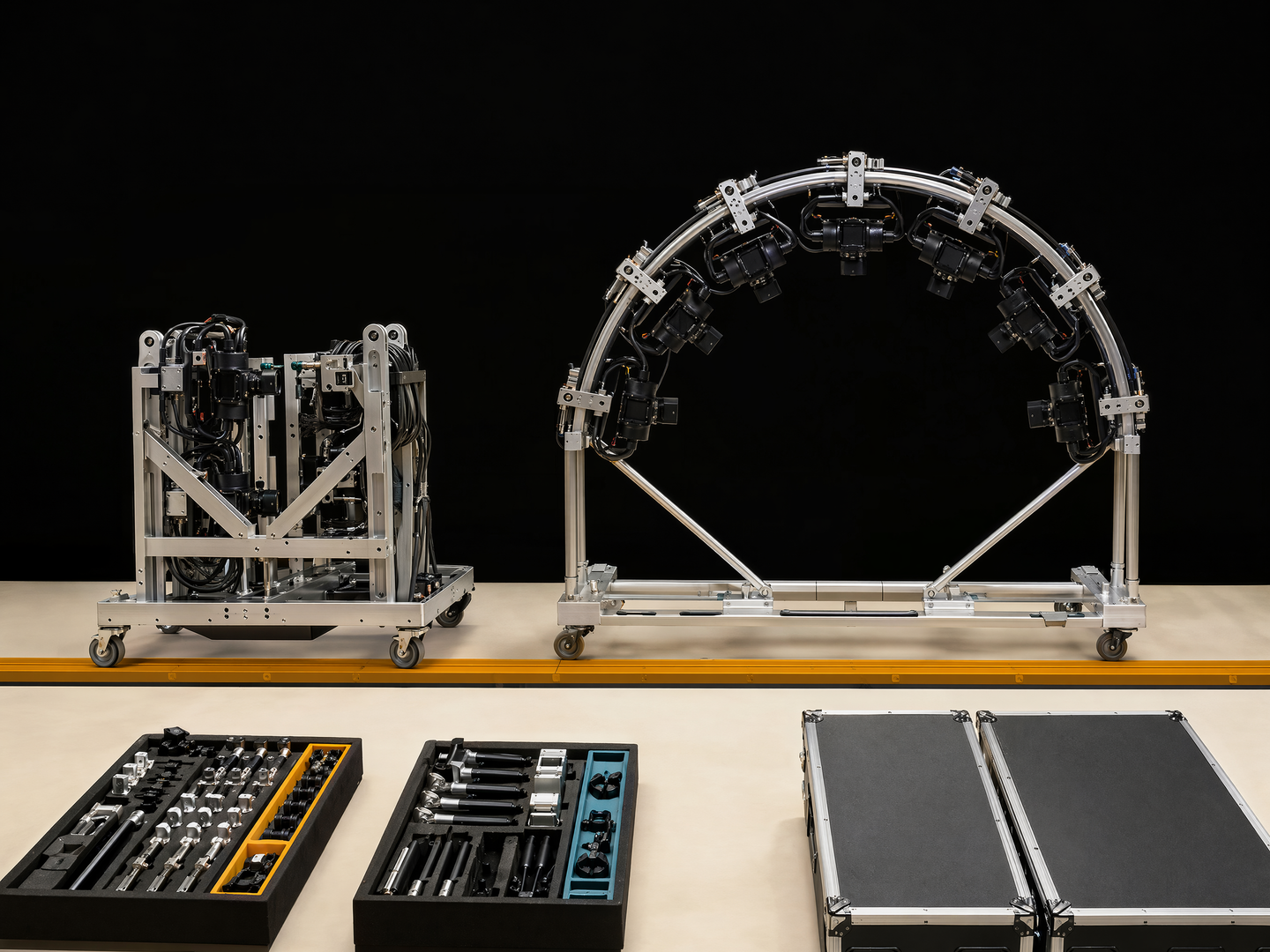

Representative MOBILE camera-array kit in deployed and folded states

MOBILE

Deploy, fold, number and move.

Wheeled and case-ready modules for touring, rental and repeated setup.

02 / Capture environments

One structural language. Different reasons to surround a subject.

Review applications

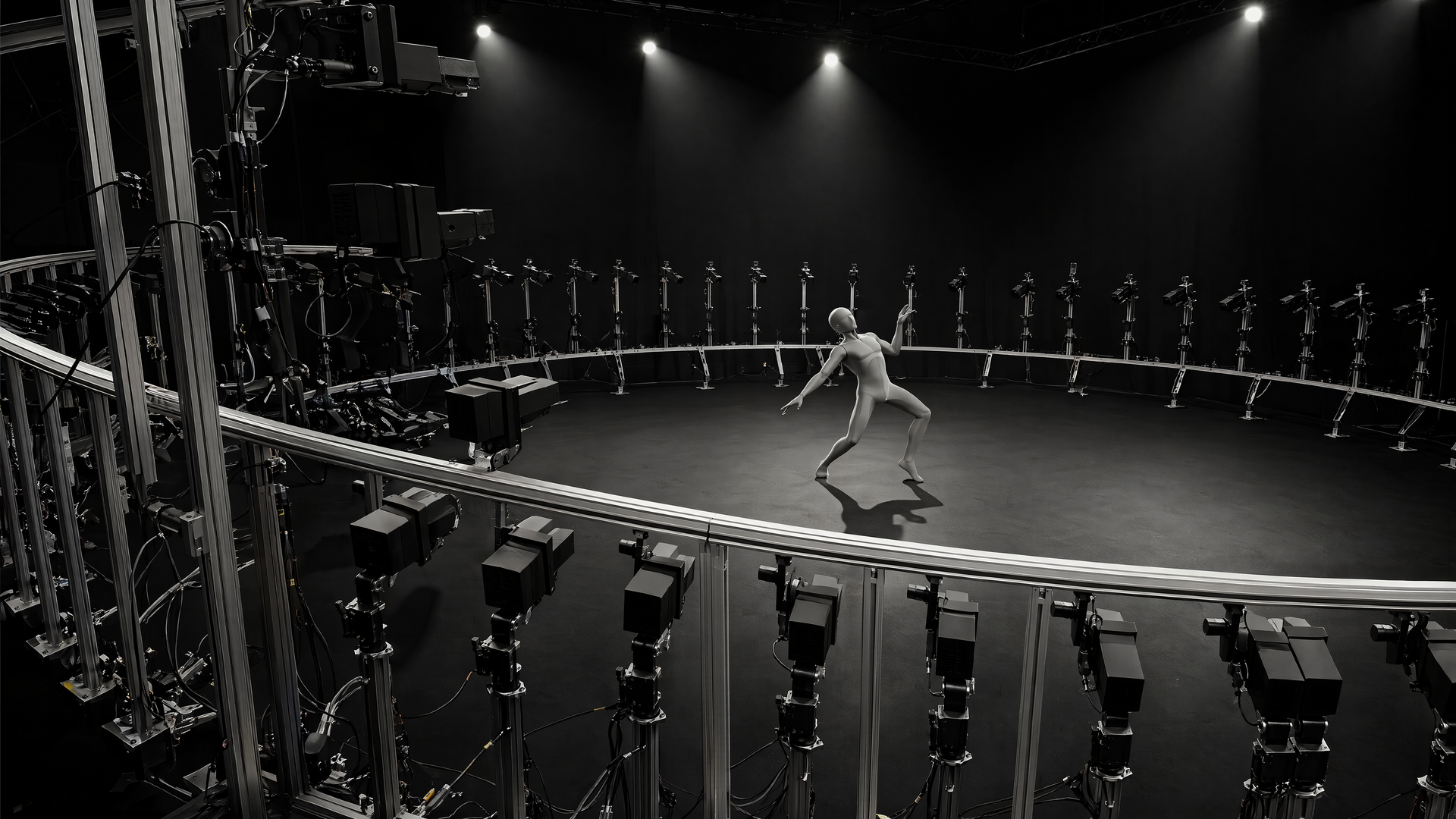

Representative cinematic bullet-time ARC around a featureless mannequin

Cinematic arrays

Freeze a moment from many viewpoints.

Bullet-time, advertising and high-speed capture where a failed setup costs more than the frame.

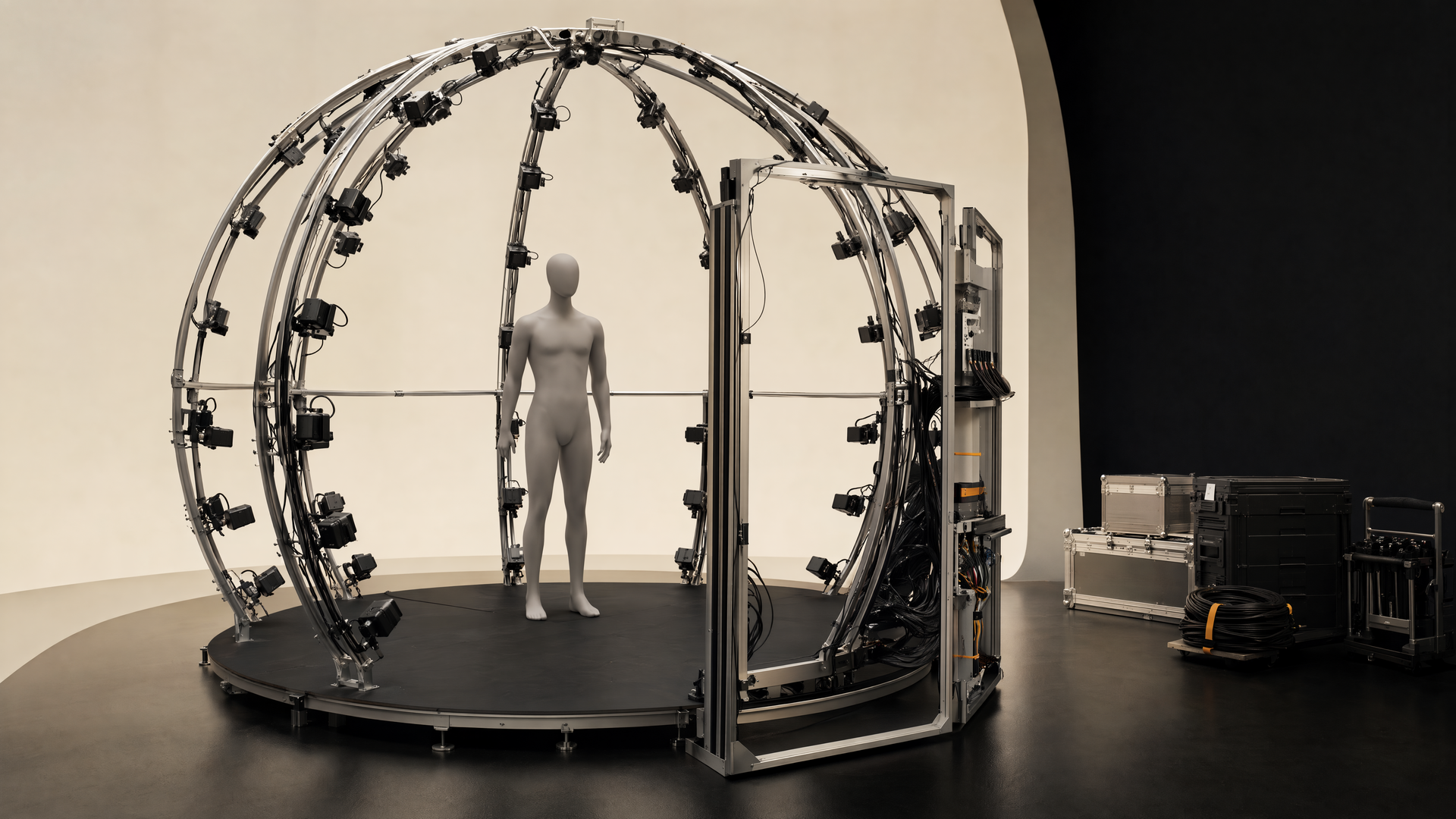

Representative full-body DOME around a featureless mannequin

3D capture volumes

Hold a repeatable full-body envelope.

Volumetric capture, photogrammetry and digital-human work with clear service access.

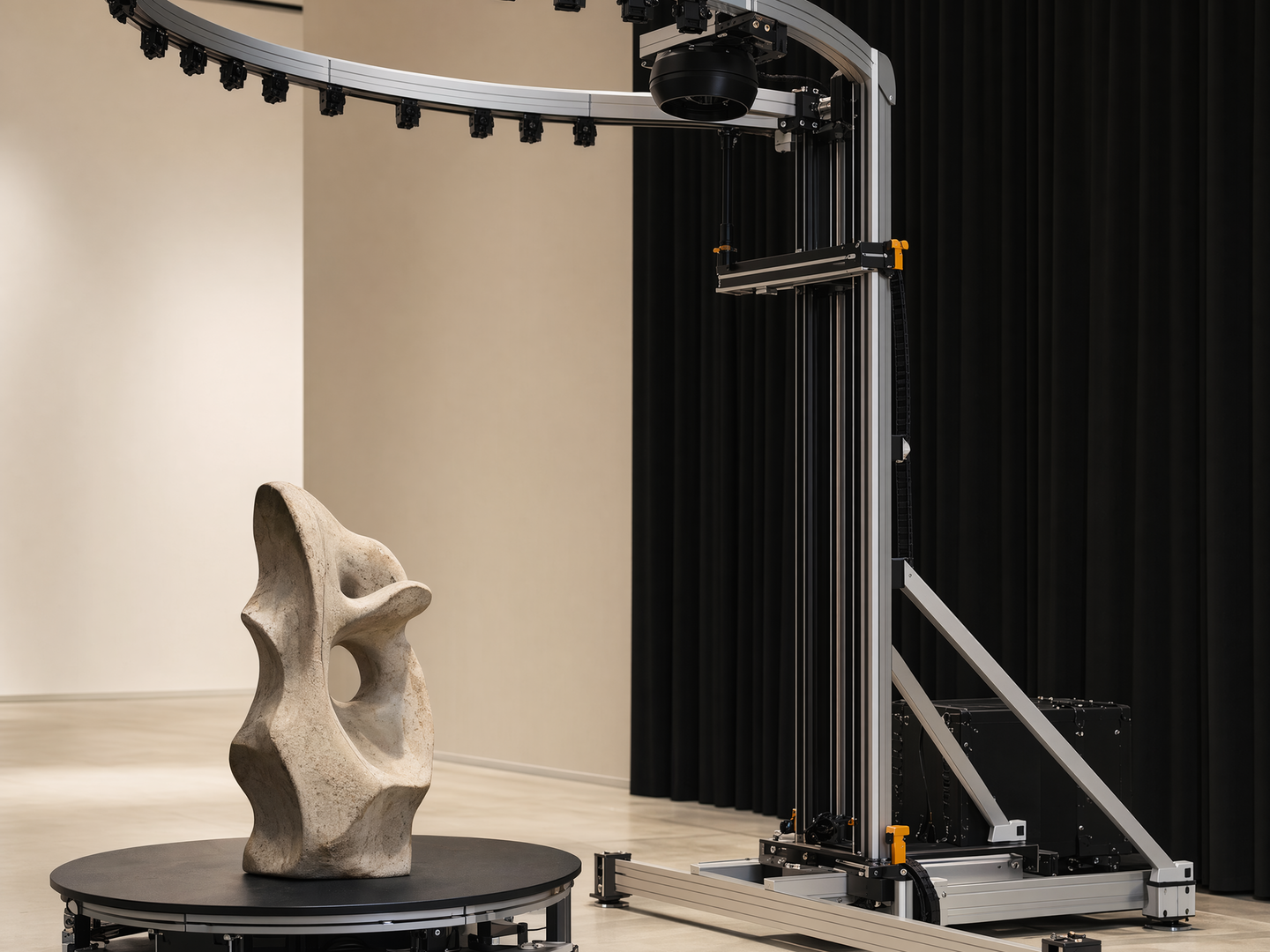

Representative object-scanning RING and overhead camera arc

Scan environments

Scale from premium objects to heritage pieces.

Adjustable rings and overhead arcs that protect access to the object and the set.

03 / Eight engineering modules

The cameras are only one layer of the structure.

Stability, frame geometry, camera nodes, cable routes, service openings, equipment support, numbering and packing all affect whether the structure can be used again.

  1. Base & stability
  2. Primary frame
  3. Geometry joints
  4. Camera nodes
  5. Cable spine
  6. Service access
  7. Equipment support
  8. Pack & restore
See the engineering layers

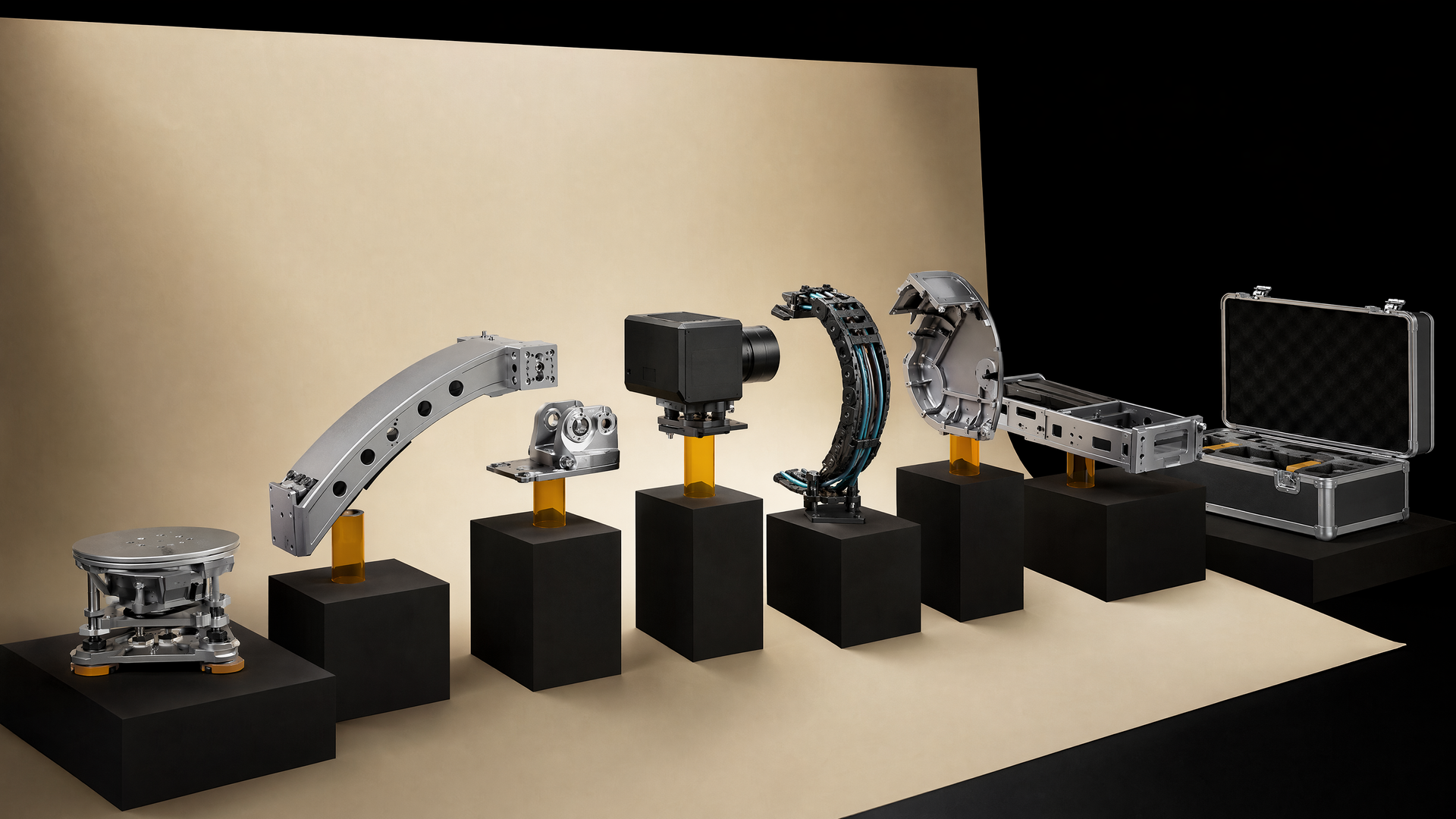

Representative exploded arrangement of eight camera-array engineering modules
Representative modules; exact structural interfaces are project-specific.

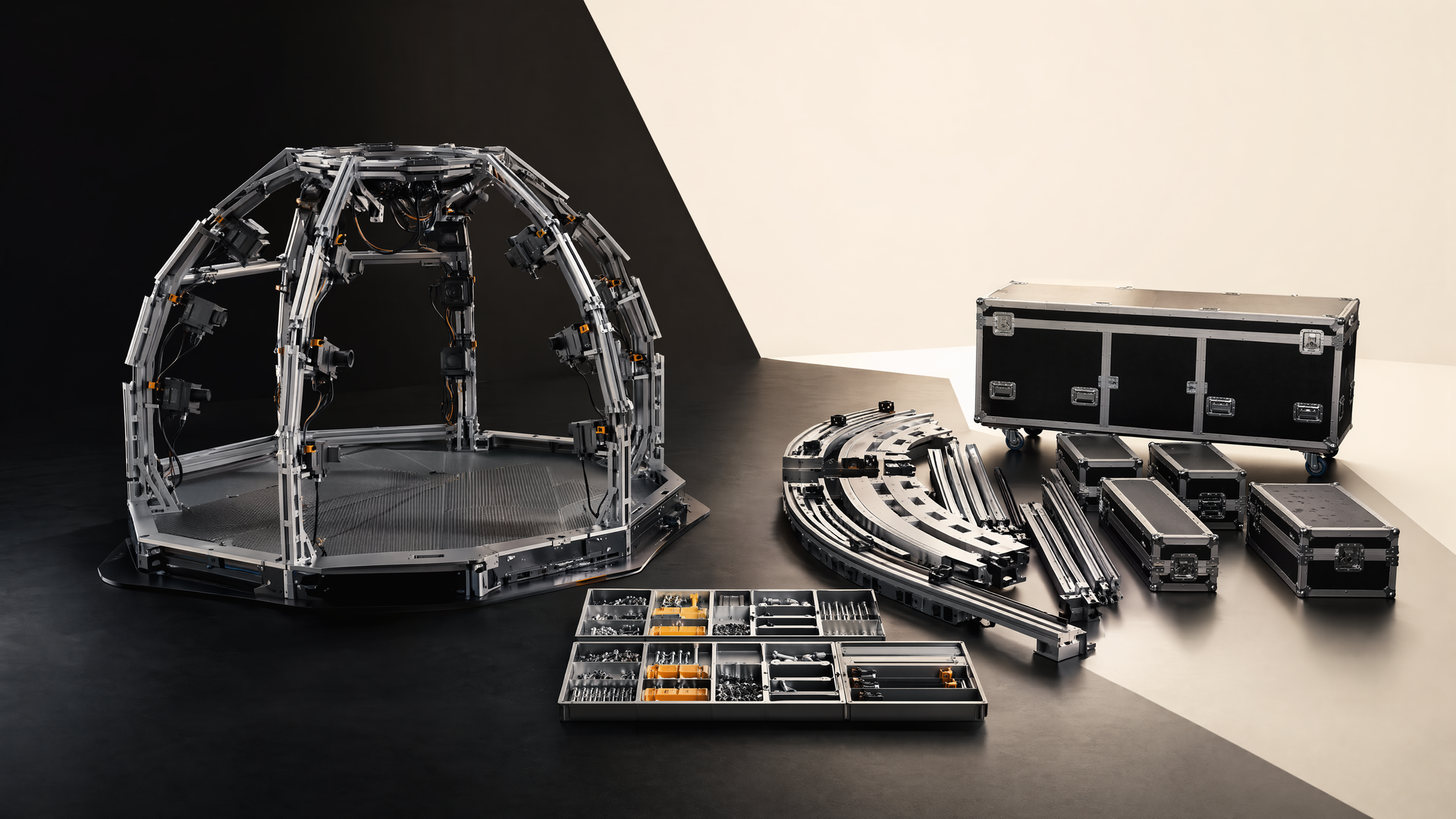

Representative assembled dome, detached modules and transport cases

04 / Complete package

Designed to come apart without becoming a puzzle.

We connect the frame, access, routing, numbering, fastener groups, transport cases and restoration notes into one agreed structural package.

Frame KitCapture-Ready StructureTouring Array PackageCustom Capture Volume
Share your capture layout

Start with the capture volume

Tell us what the cameras must surround, where the structure must open and how it must travel.

Plan your array
