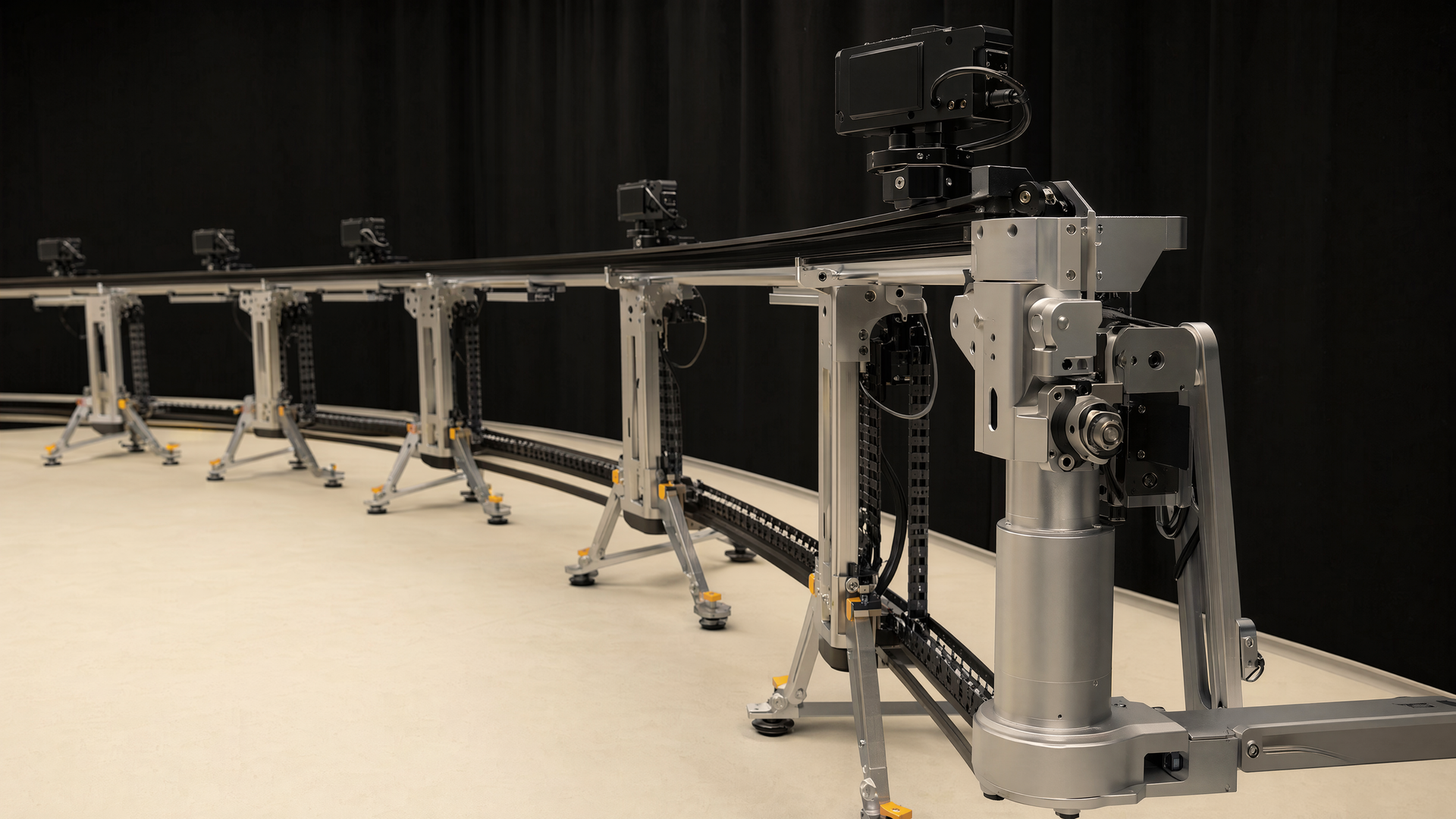

ARC
Direct a curved field of cameras toward one centre.
Single or multi-level arrays for time-slice, action and large-subject capture.
Systems / six structure families

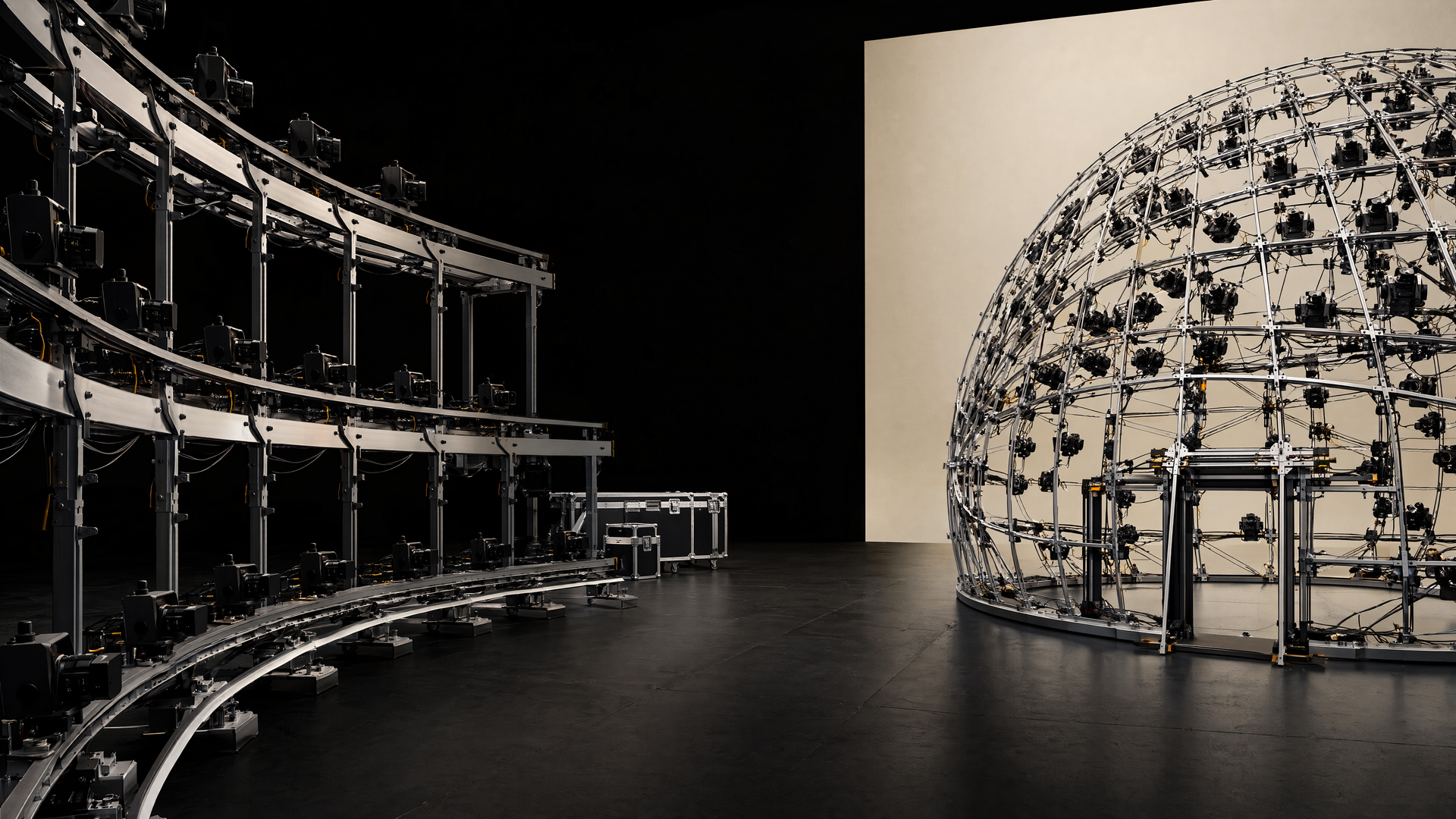

Choose the geometry. Configure the complete frame.
Start with the subject envelope, camera layout and service space. Then configure the structure, access, stability, routing and transport package.
01 / Families
Six geometries. One modular language.
These are configurable frame families, not fixed dimensions or online SKUs.

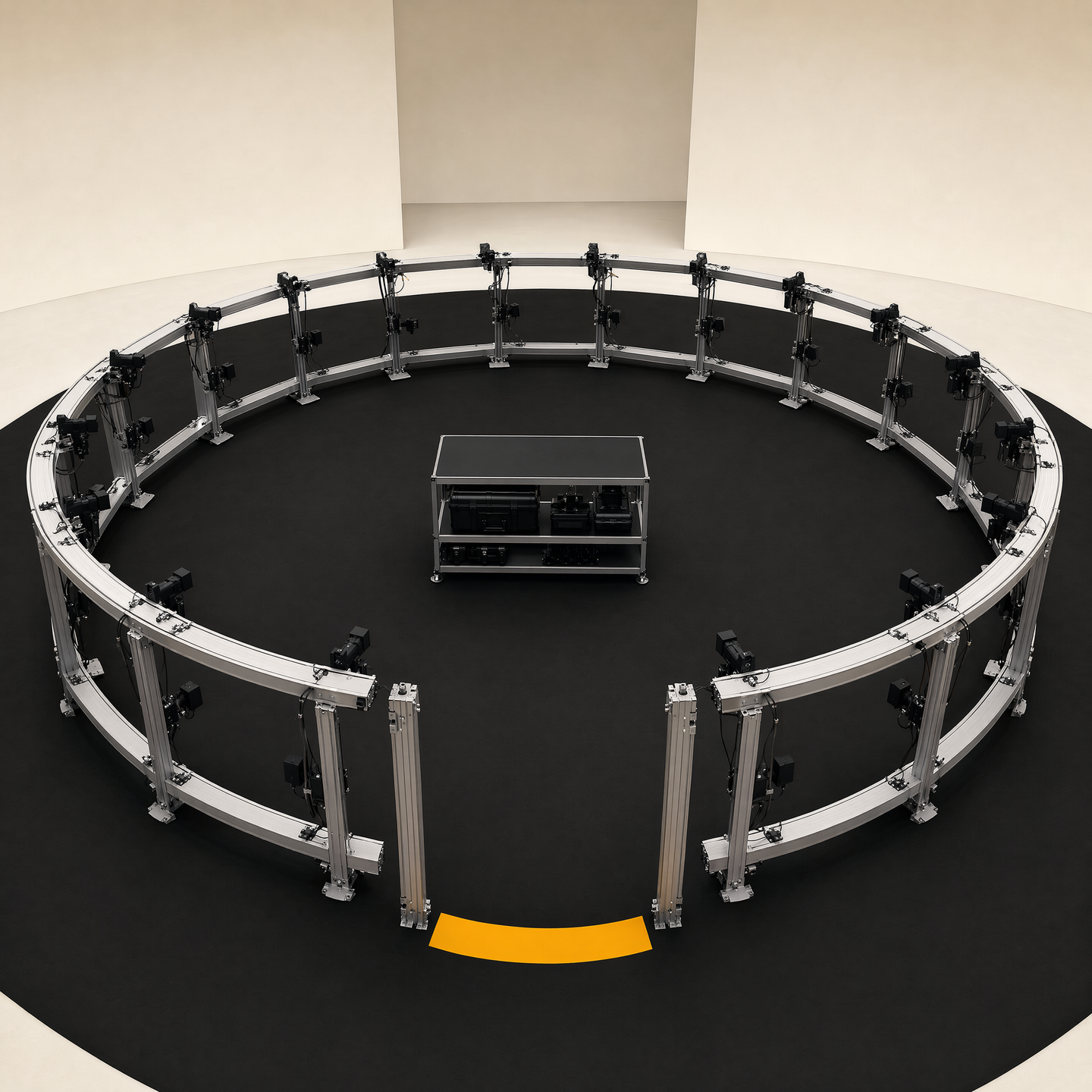

RING
Close the orbit while preserving an entrance.
Segmented rings for people, products and repeatable surround capture.

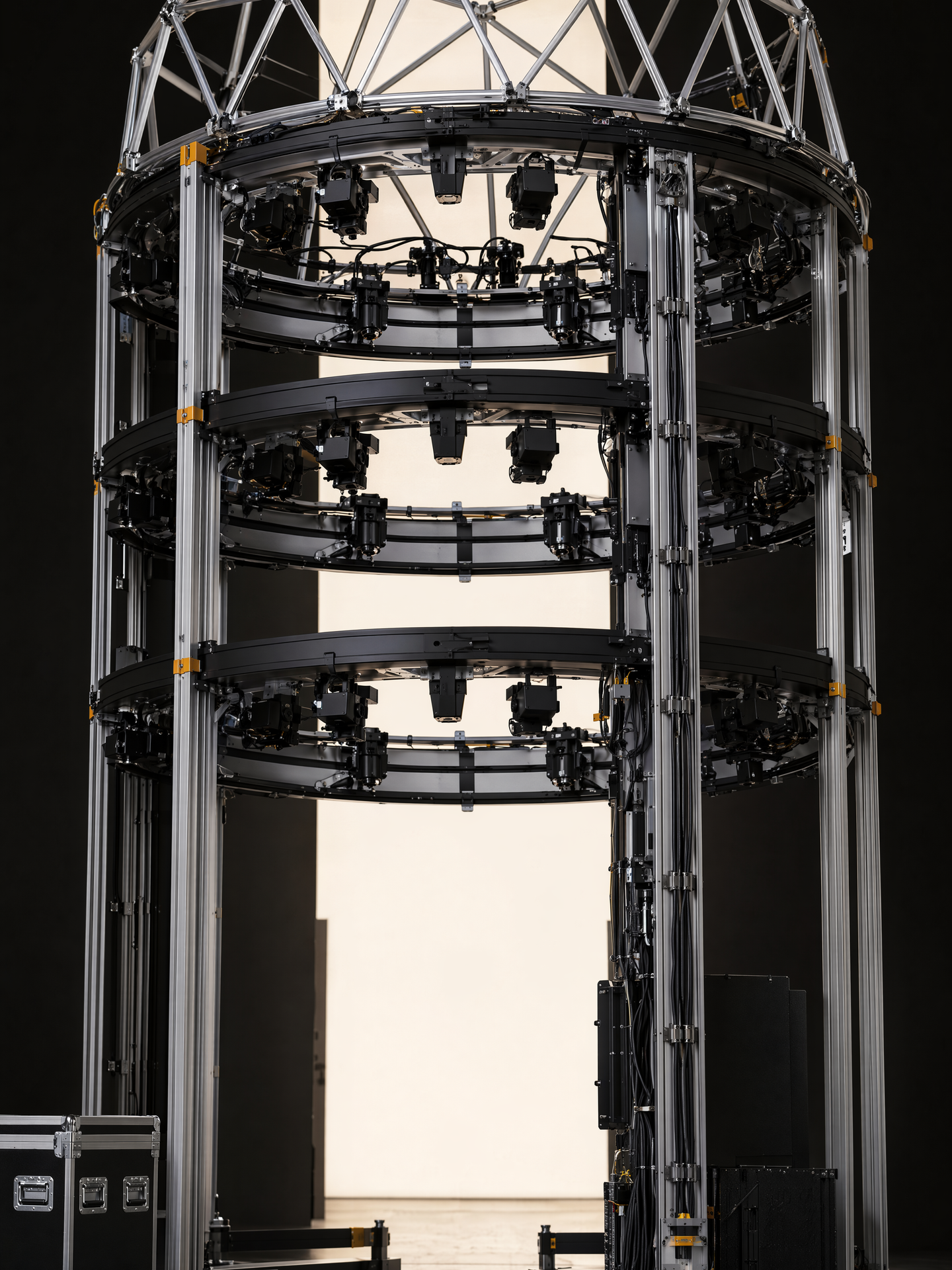

DOME
Build vertical coverage into the volume.
Multi-tier and geodesic frames for body, face and volumetric stages.

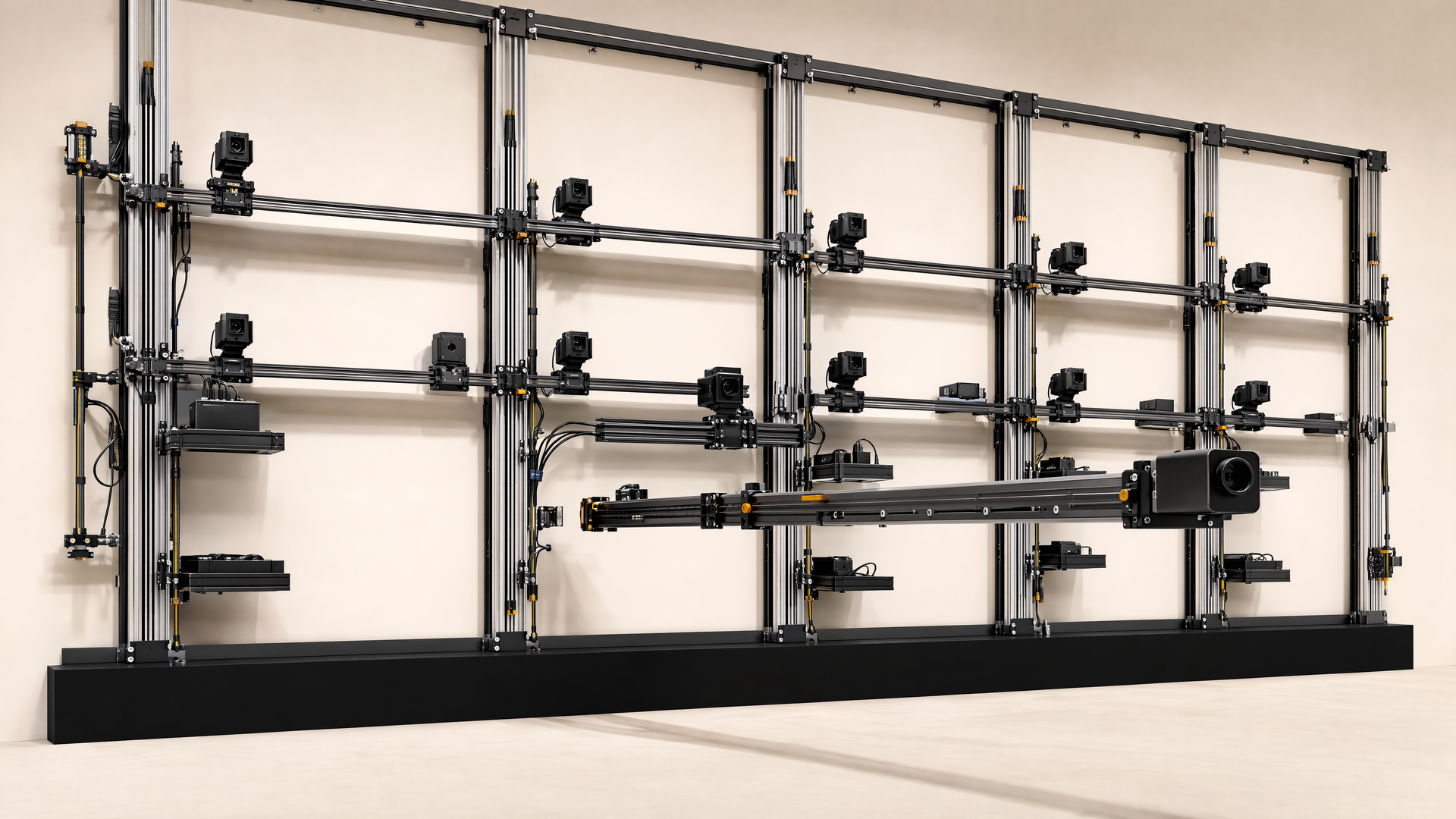

GRID
Distribute cameras across a wall or boundary.
Sliding rails, equipment trays and cable management on planar structures.

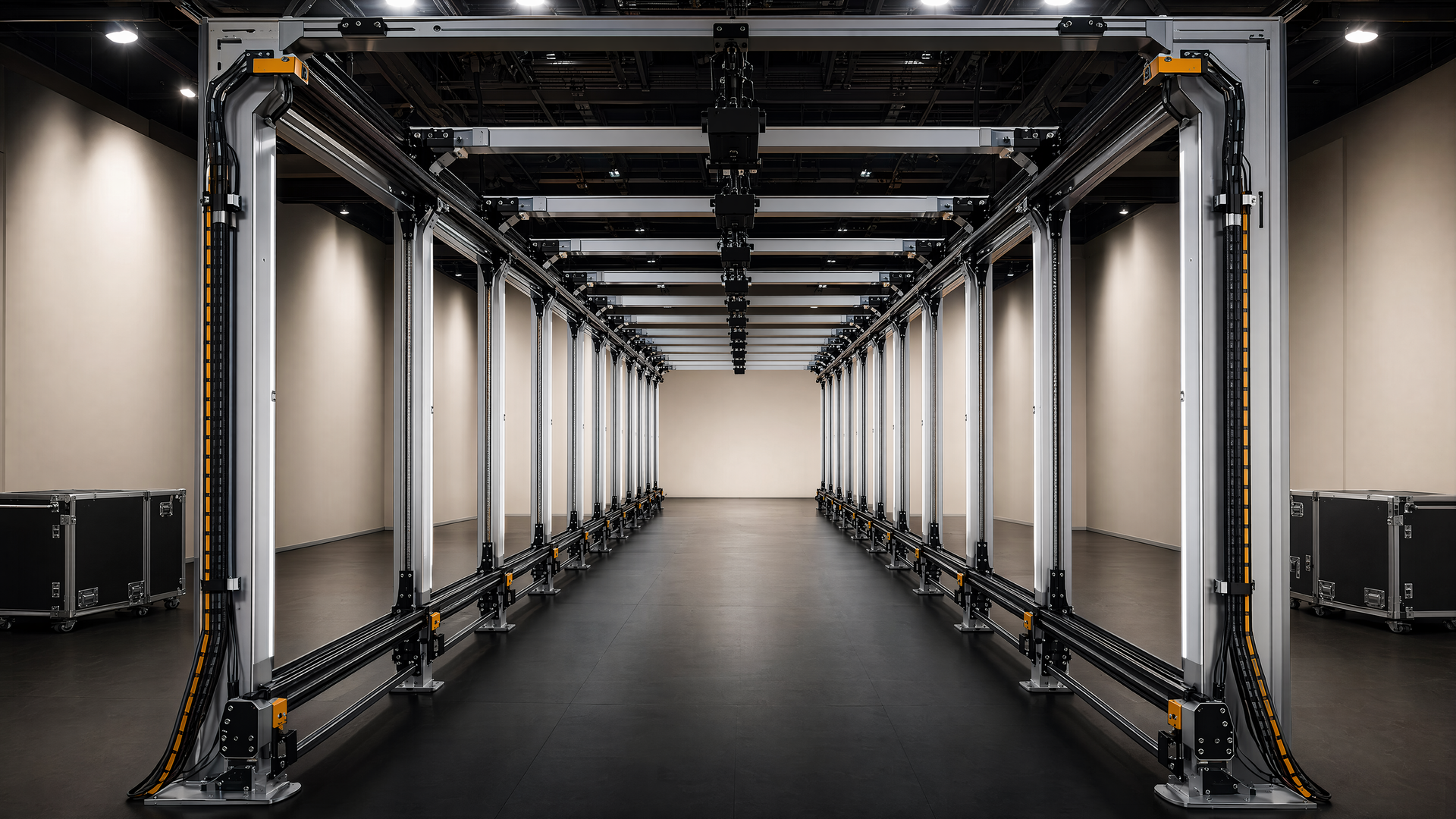

TUNNEL
Extend capture along a path.
Portal frames with side and overhead nodes around a clear passage.

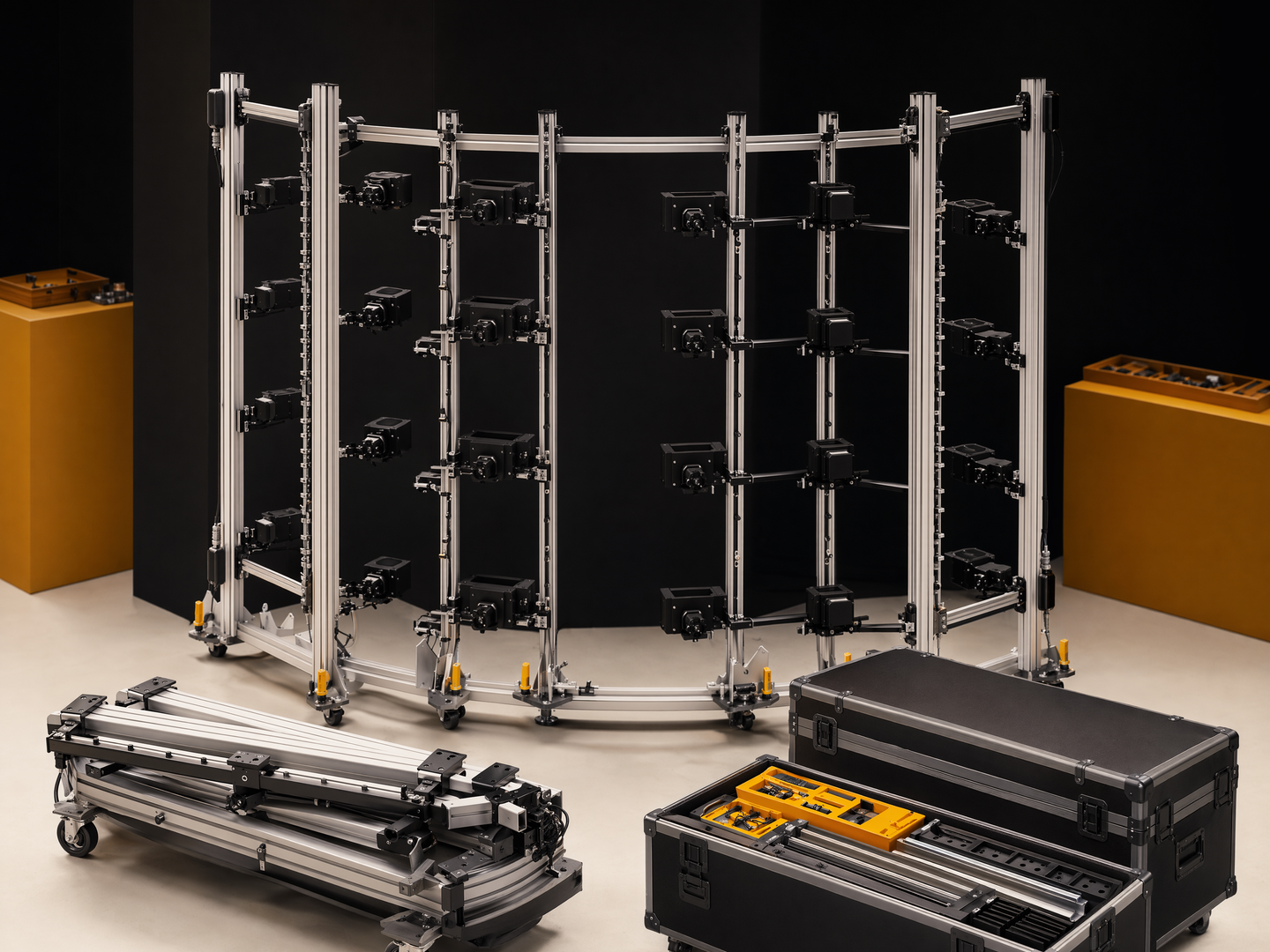

MOBILE
Prepare the array for repeated moves.
Folding frames, lockable casters, removable rails and fitted cases.
02 / Capture scale
The frame follows the envelope.
Camera quantity alone does not define the system. Subject scale, sight lines, reach, service space and transport route change the geometry.
Scale 01

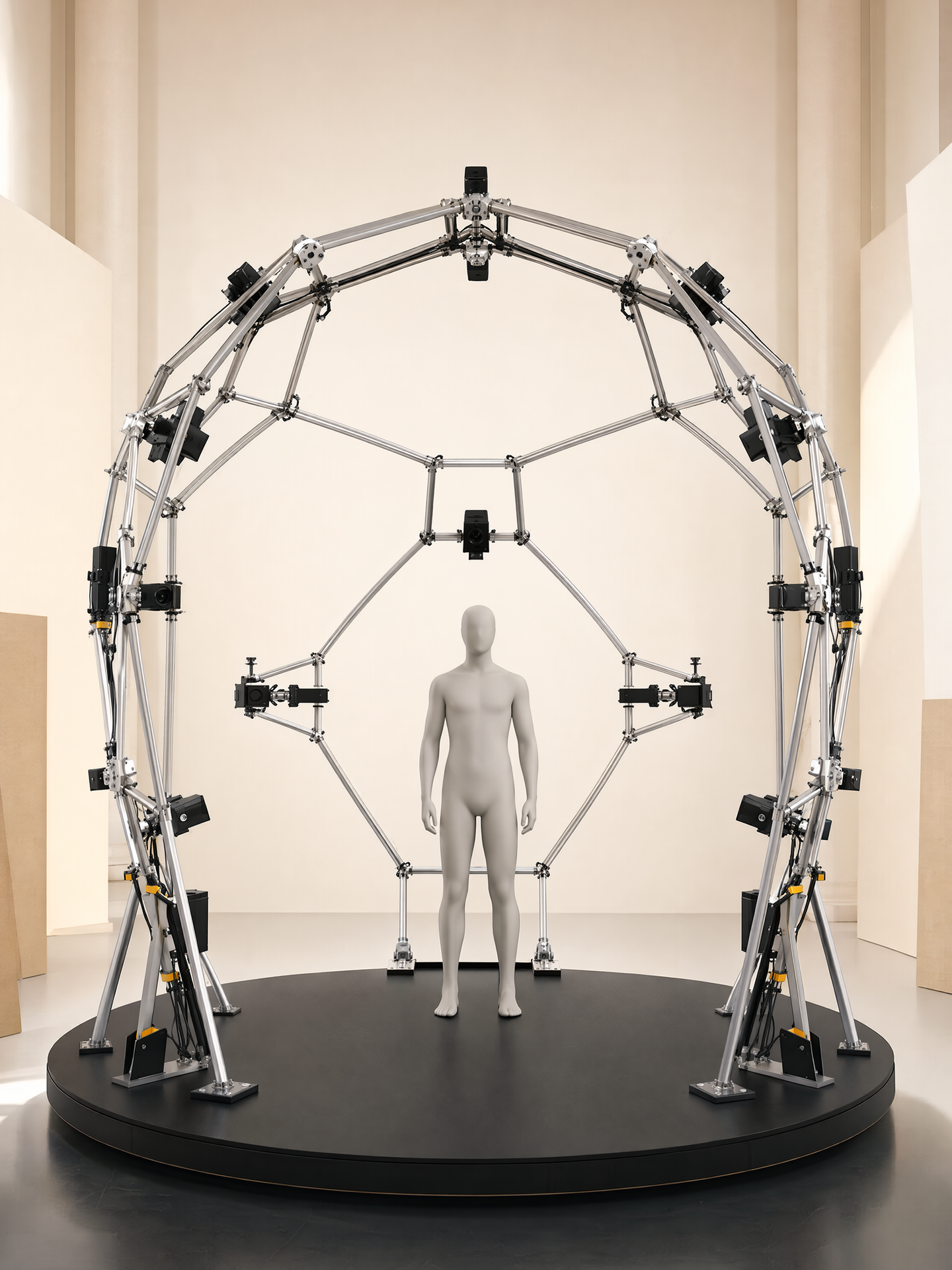

Human scale
Body, fashion and digital-human capture volumes.
Scale 02

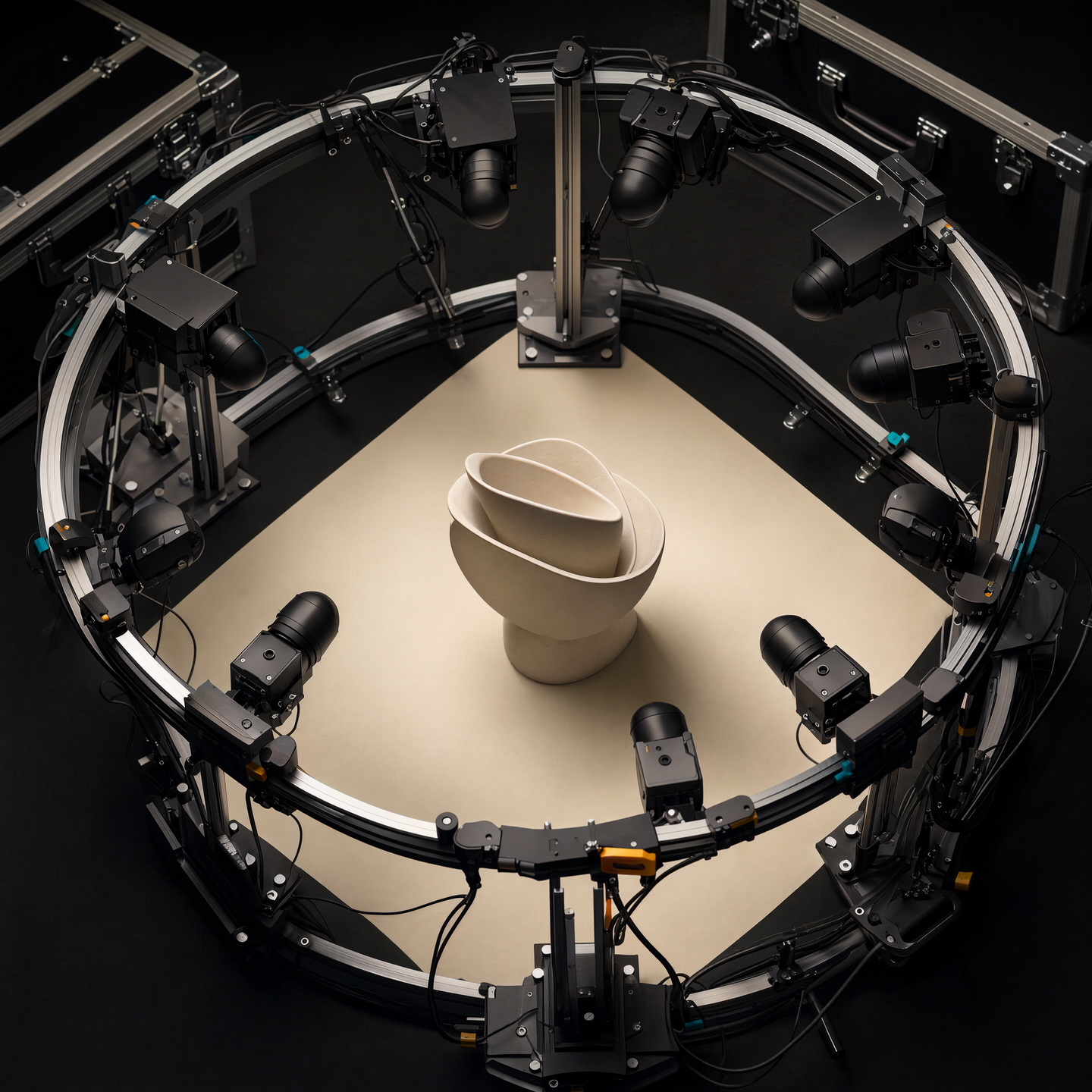

Product scale
Compact rings and half-domes for premium objects and close work.
Scale 03

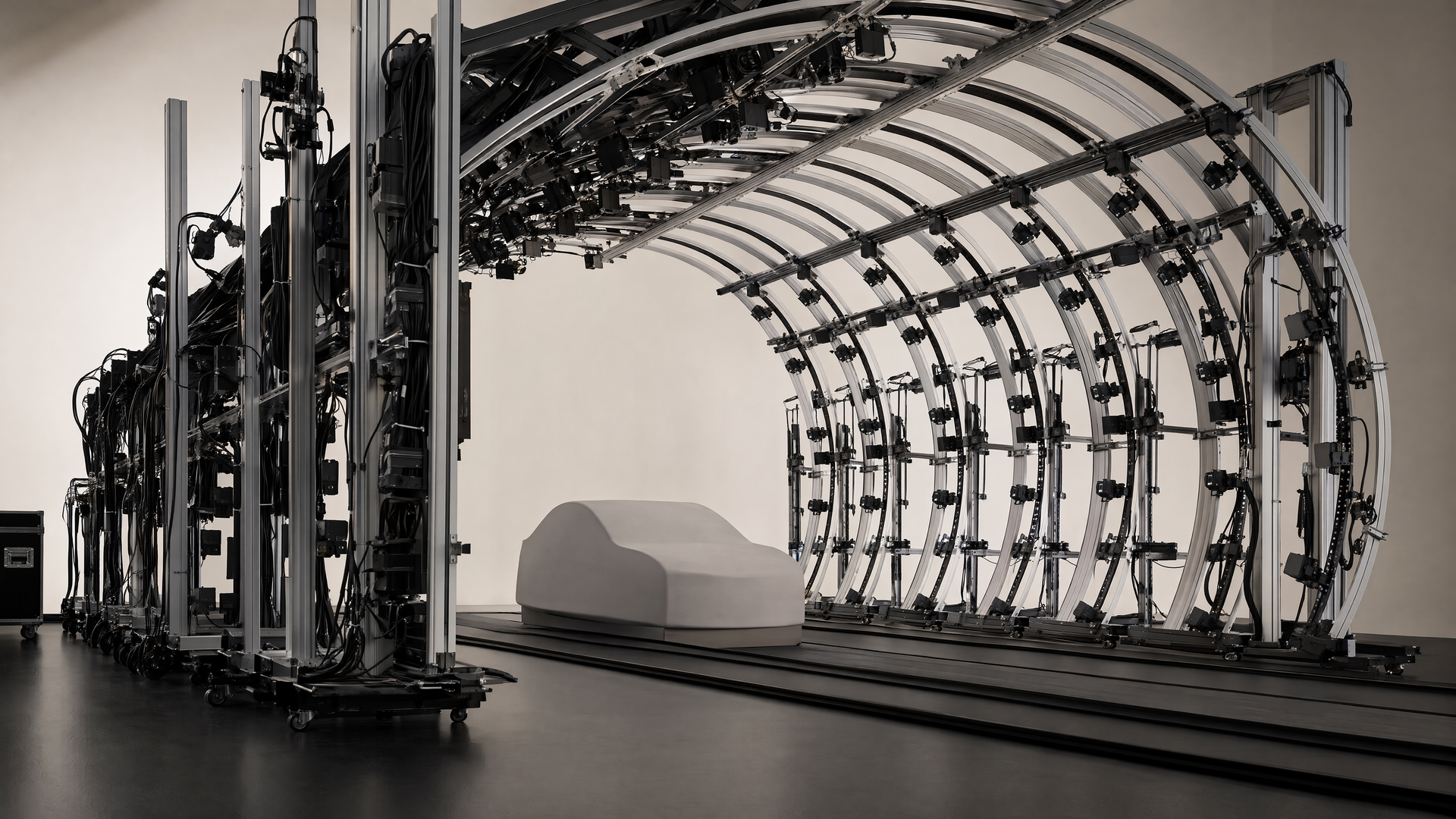

Vehicle scale
Large tunnels and partial rings around an anonymous gray clay volume.
The gray clay volume is deliberately generic and unbranded. It is only a scale target, not a real vehicle or customer asset.

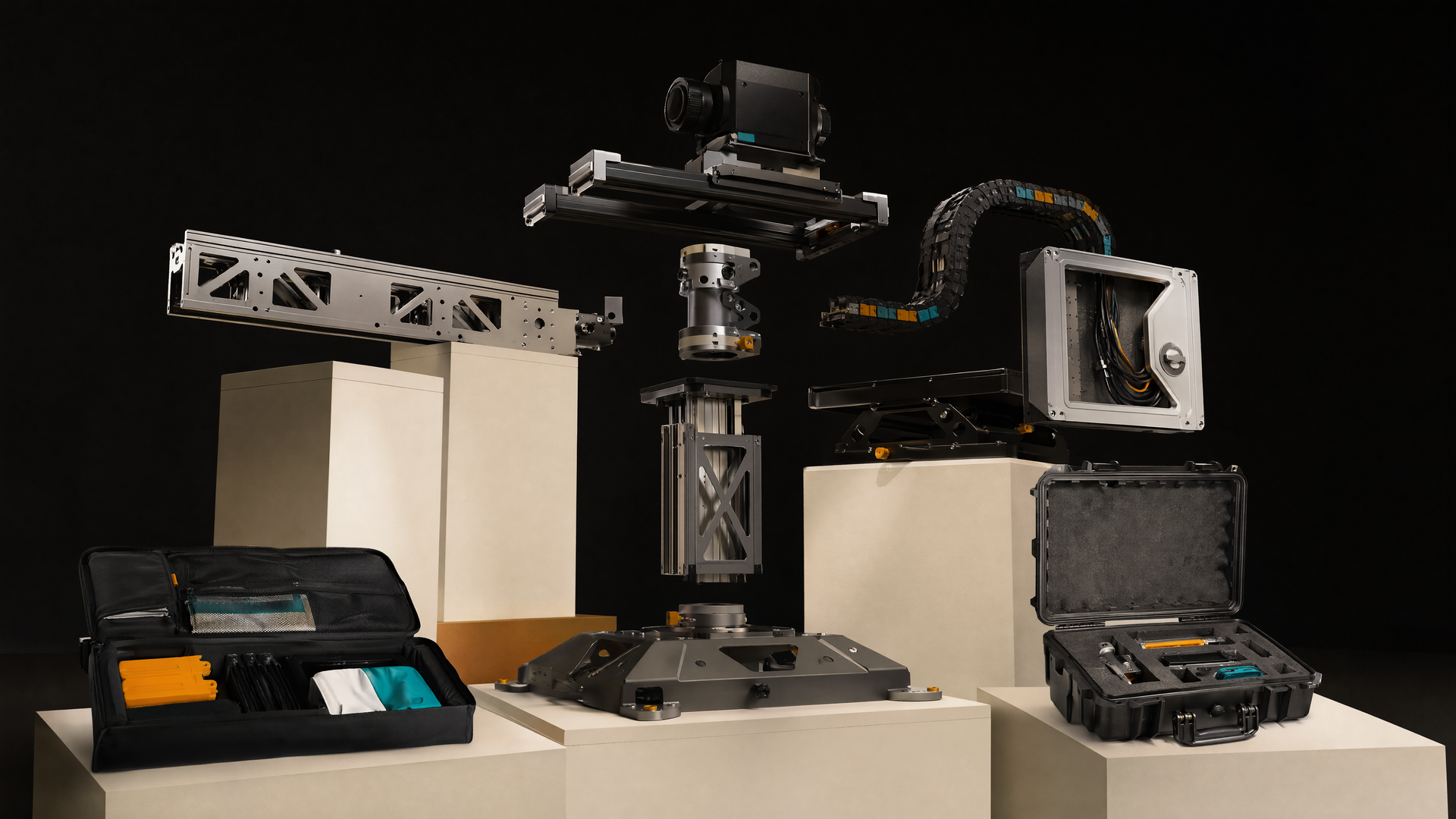

03 / Module anatomy
Build a serviceable system, not a closed sculpture.
The frame must carry cameras while leaving routes for power, network and synchronization cables, access for replacement, and support for integrator-supplied equipment.
Structural scope
Bases, frame members, geometry joints, camera nodes, secondary retention interfaces and agreed stability components.

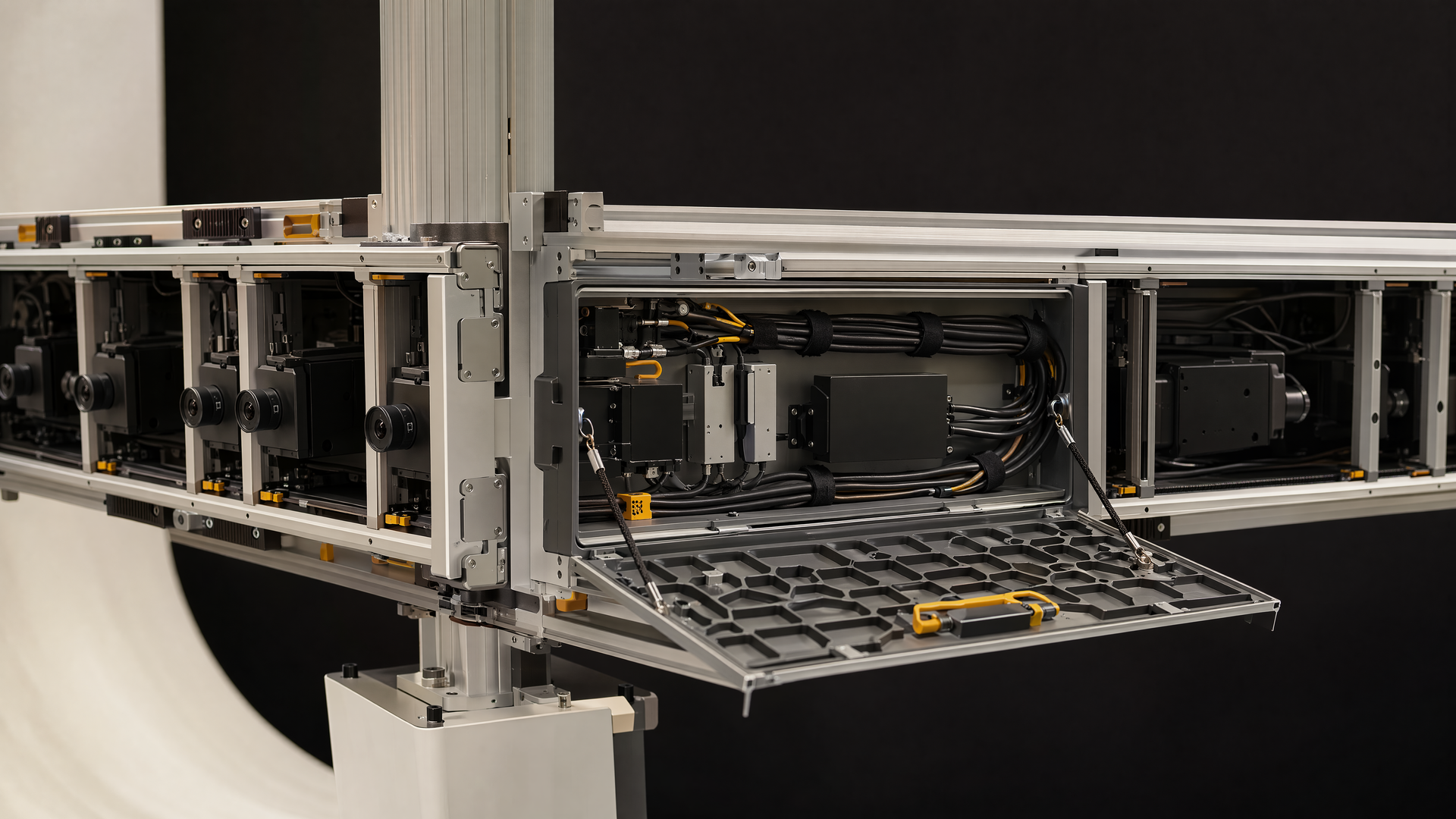

Service scope
Cable spine, exits, quick-open segments, equipment trays, access space, numbering and restoration materials.
04 / Project packages
Buy the deliverable, not the material list.
Exact scope remains project-specific. The package names make the handoff level easier to compare.

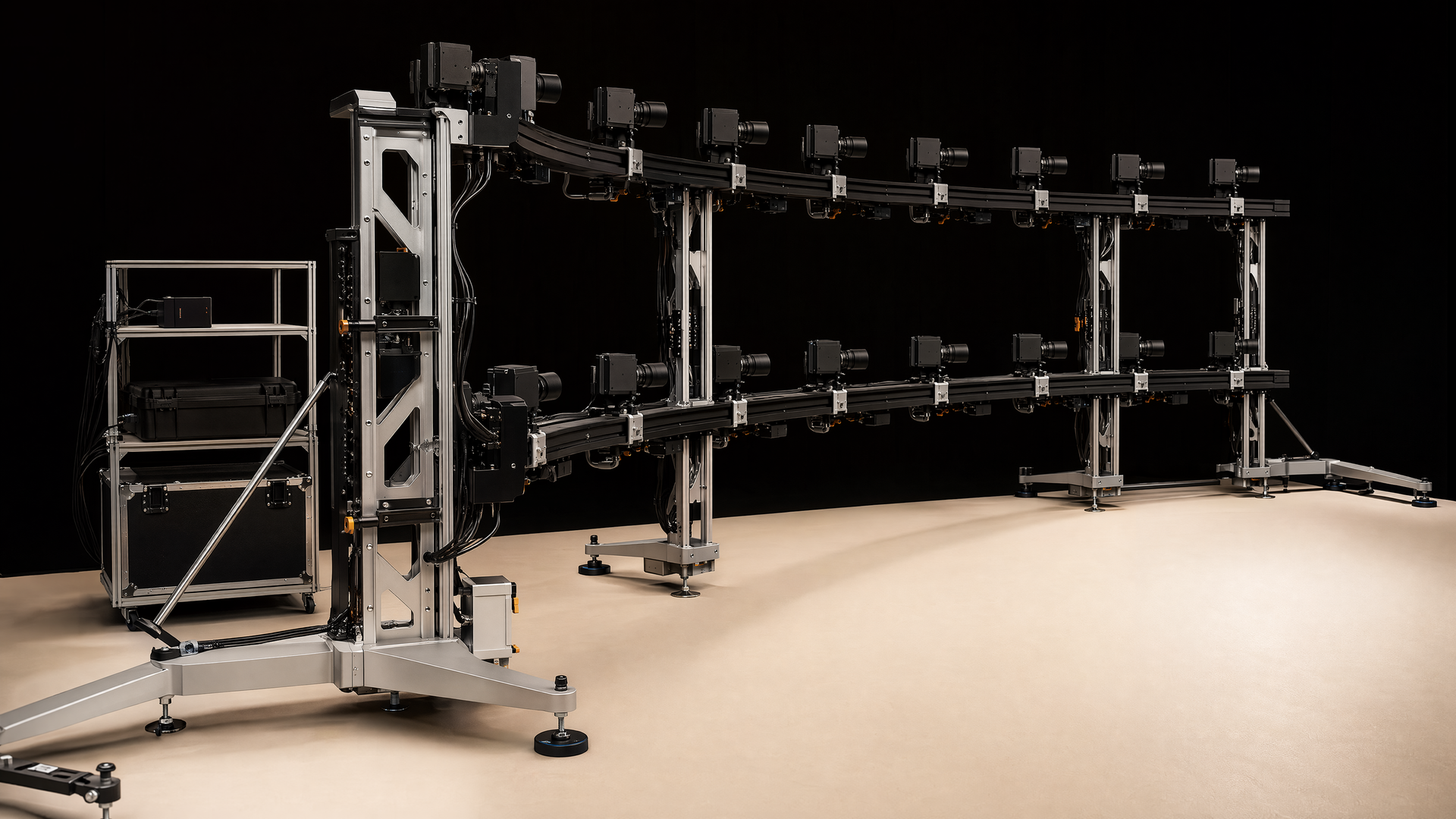

Capture-ready
A deployed frame with routing, bases and equipment support.
Frame Kit plus cable access, service provisions, equipment support and pre-assembly review.

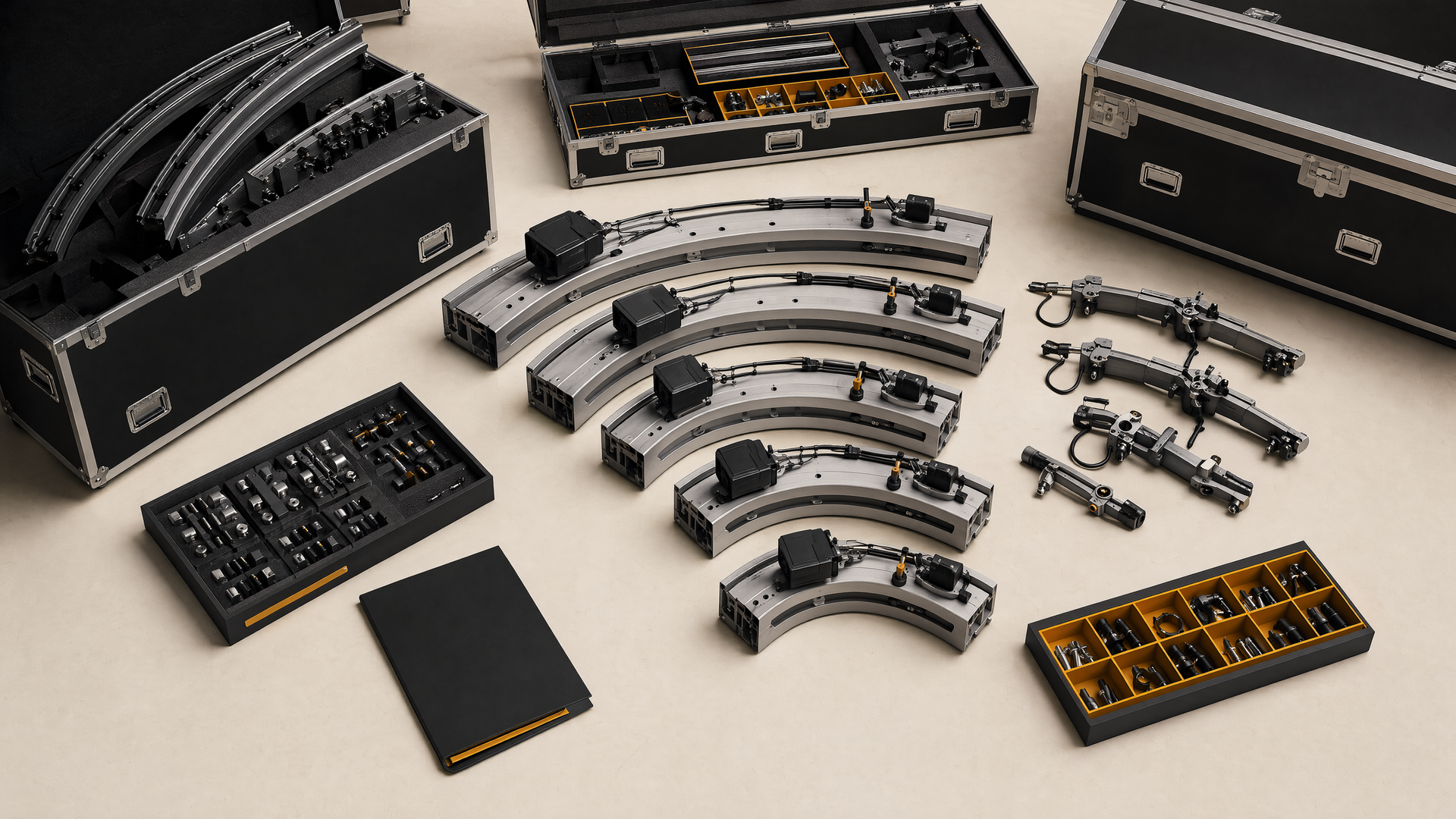

Touring
Segments, cases, spares and restoration order.
Capture-ready structure plus repeated setup, transport cases, spare groups and restoration documentation.
Frame Kit
Structure, geometry joints, bases and agreed camera-node interfaces.
Capture-Ready Structure
Frame Kit plus routing, access, equipment support and pre-assembly review.
Touring Array Package
Repeated setup, cases, spares, identification and restoration notes.
Custom Capture Volume
A special geometry configured around the site, layout and delivery boundary.
No fixed model required
