Load path
Connect bases, supports, beams and nodes.
The frame geometry must stay understandable from the floor to the camera interface.
Engineering / structural delivery

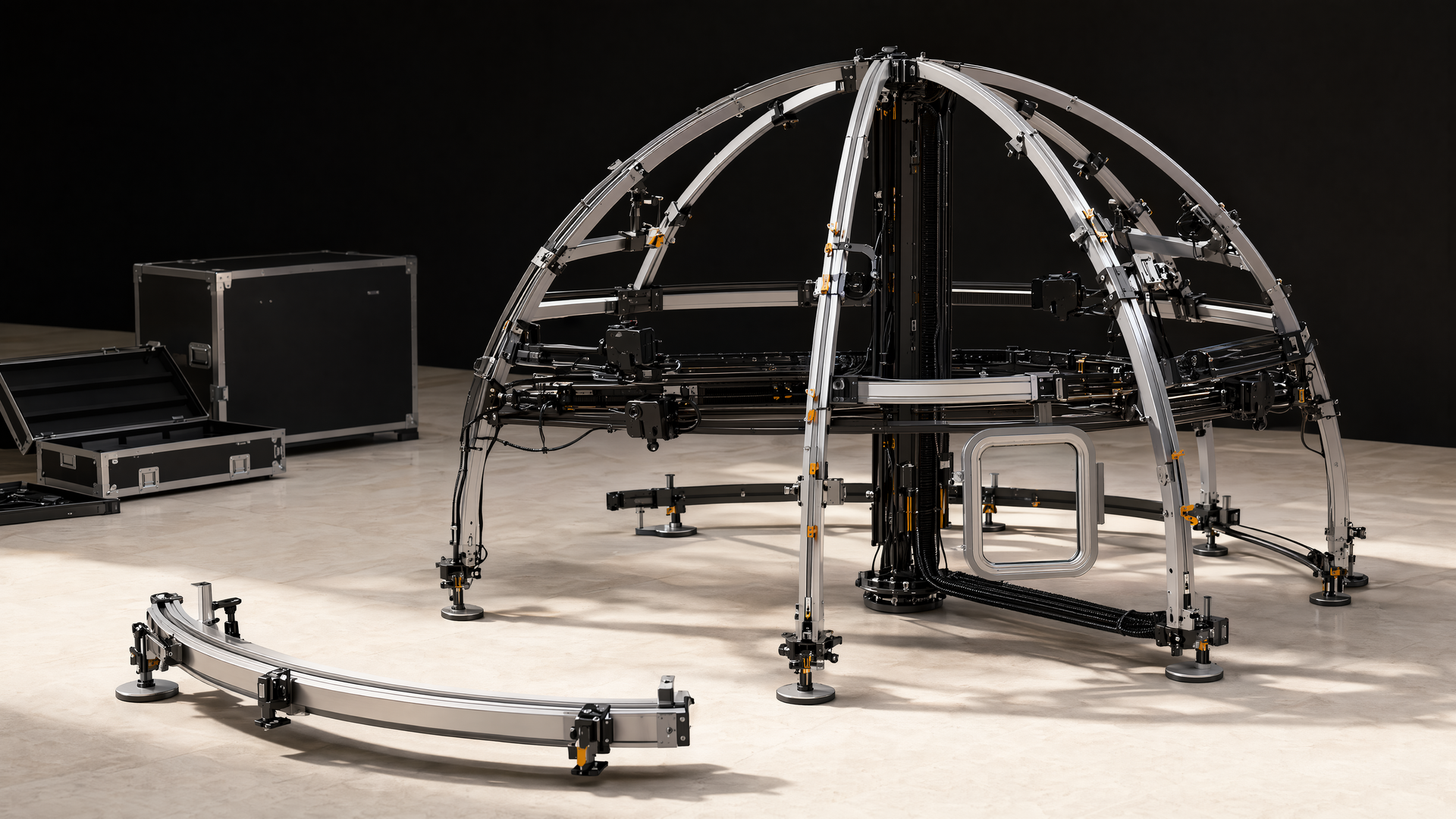

A camera array succeeds when the frame disappears from the crew's problems.
We turn the agreed capture layout into a serviceable, stable, separable and transportable structure package.

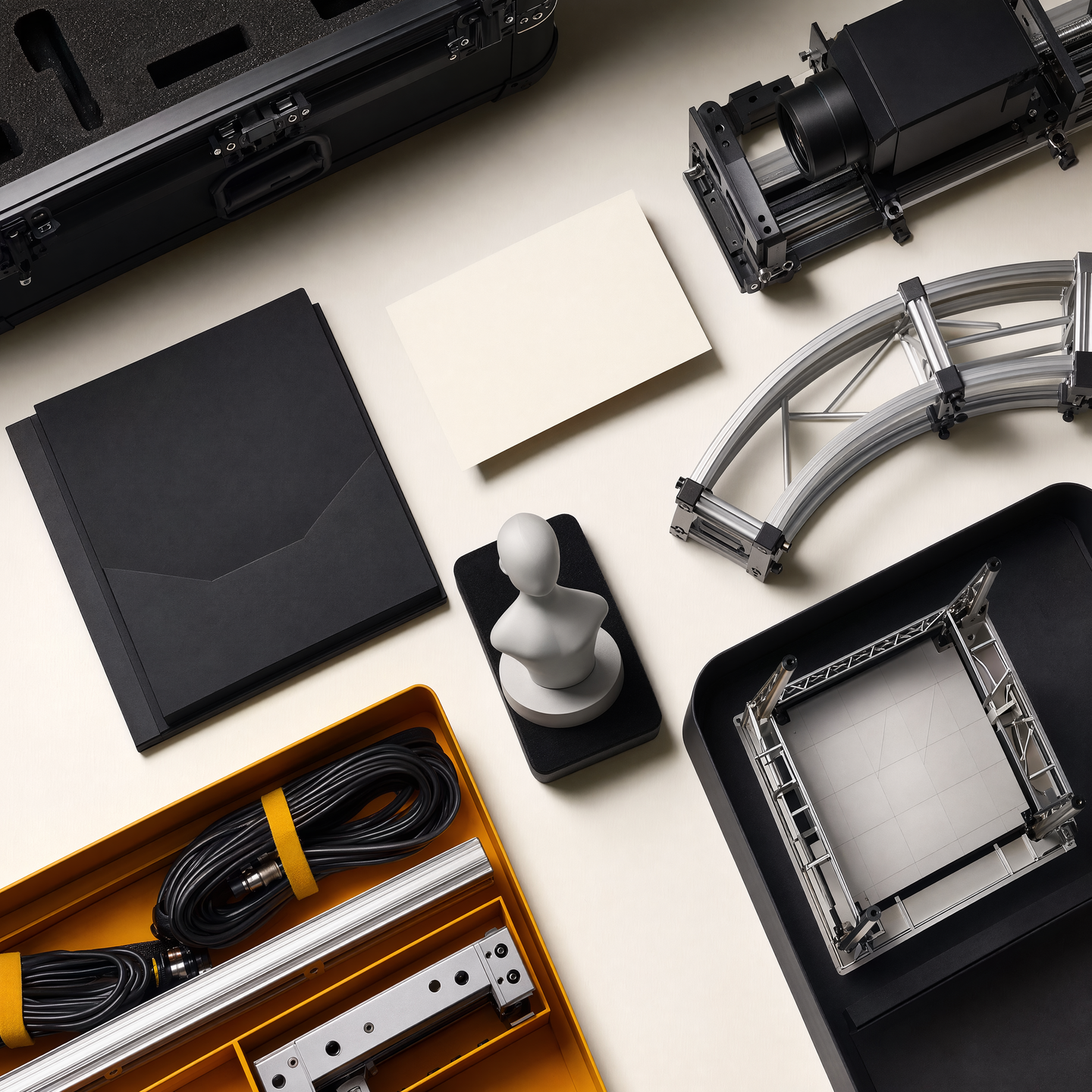

01 / Inputs
Engineering starts with the project, not a guessed catalogue model.
Purpose, camera layout, capture geometry, subject volume, site, cable plan, access route and transport requirements define the frame brief.
- Capture purpose and subject envelope
- Camera quantity, mass and mounting interface
- Planned camera positions and sight lines
- Site footprint, height and access
- Cable and equipment routes
- Disassembly, packing and support boundary
02 / Structure

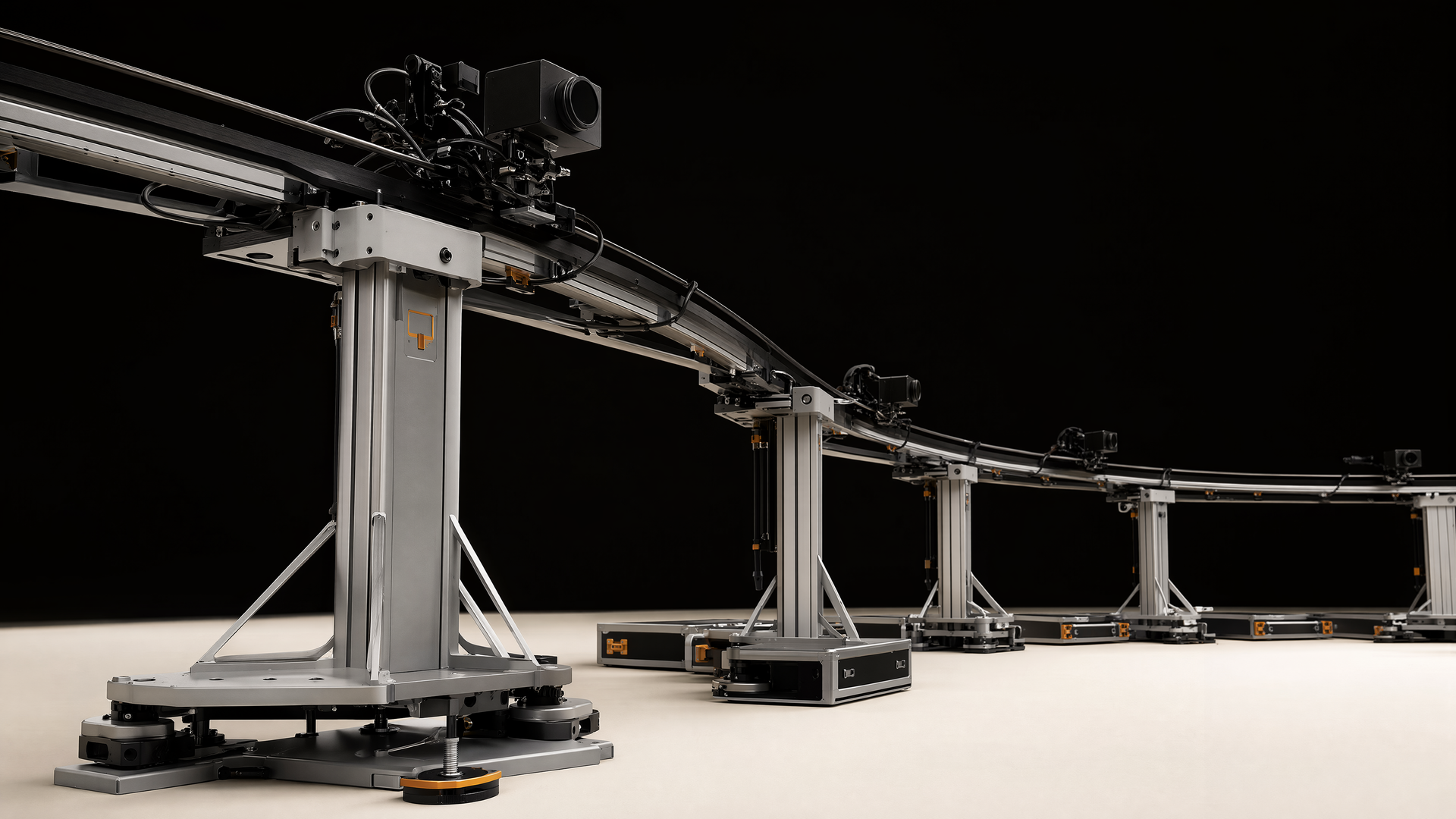

Carry the geometry from the base to every camera node.
Every load, interface, stabilizer and access requirement is confirmed for the actual project.

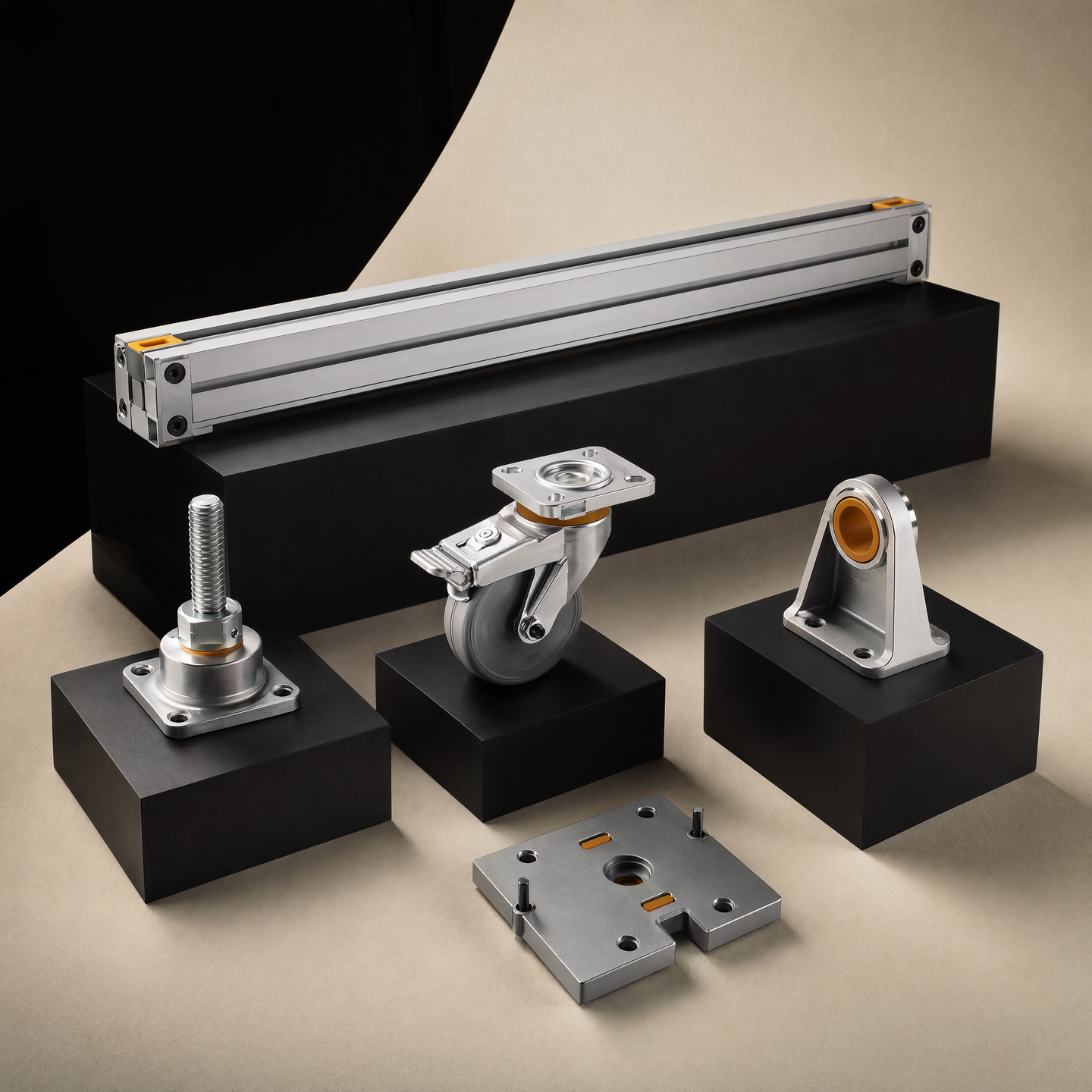

Stability
Choose the base and site interface.
Levellers, casters, external supports, ballast or anchoring interfaces remain project-specific.

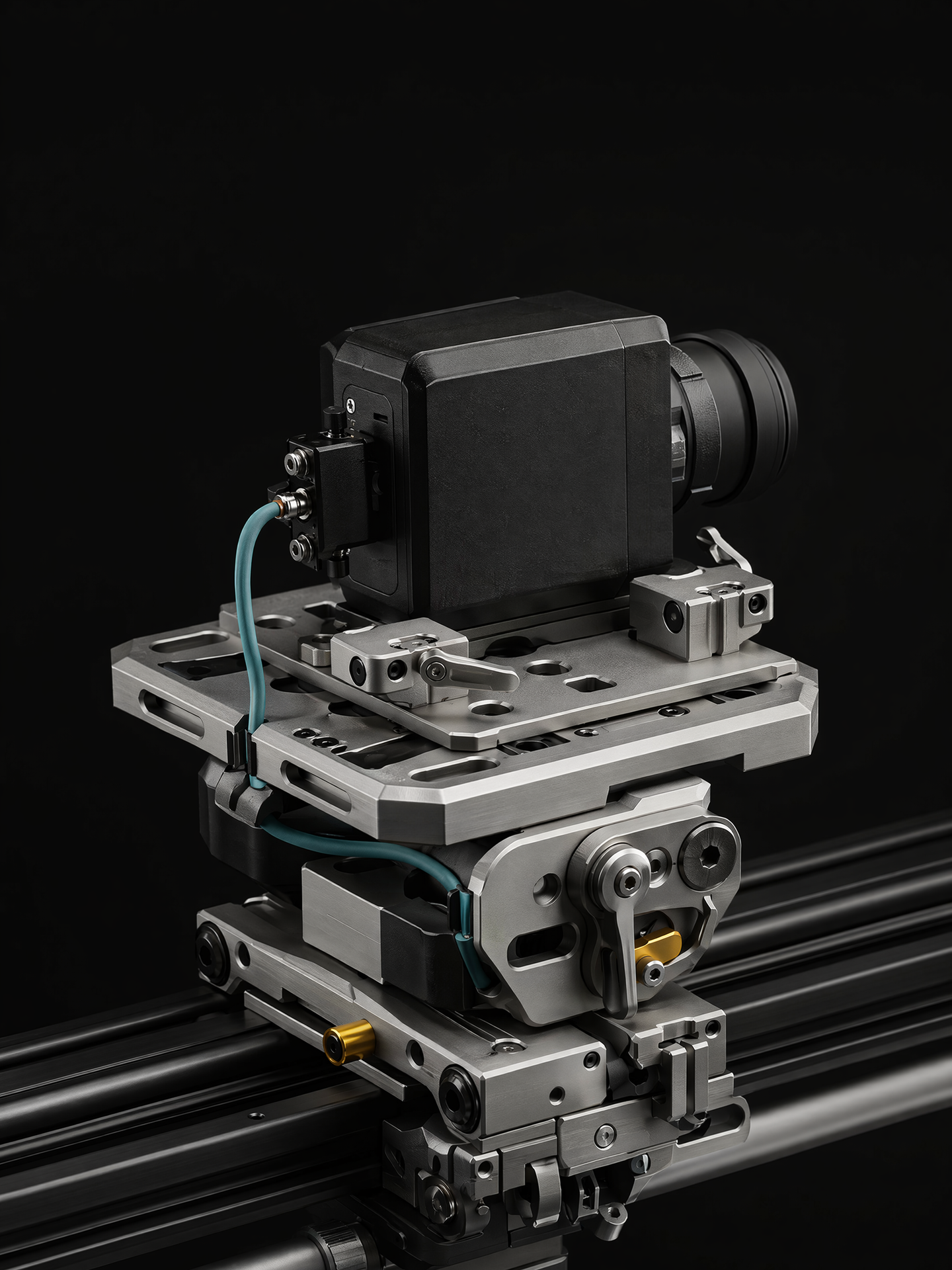

Camera nodes
Adjust position and verify retention.
The node combines rail adjustment, locking and an agreed secondary-retention interface.
03 / Routing and access
Hide the cable problem without hiding access to it.
Power, network and synchronization routes need strain relief, service exits and replacement space. Quick-open segments and equipment support keep the structure maintainable.

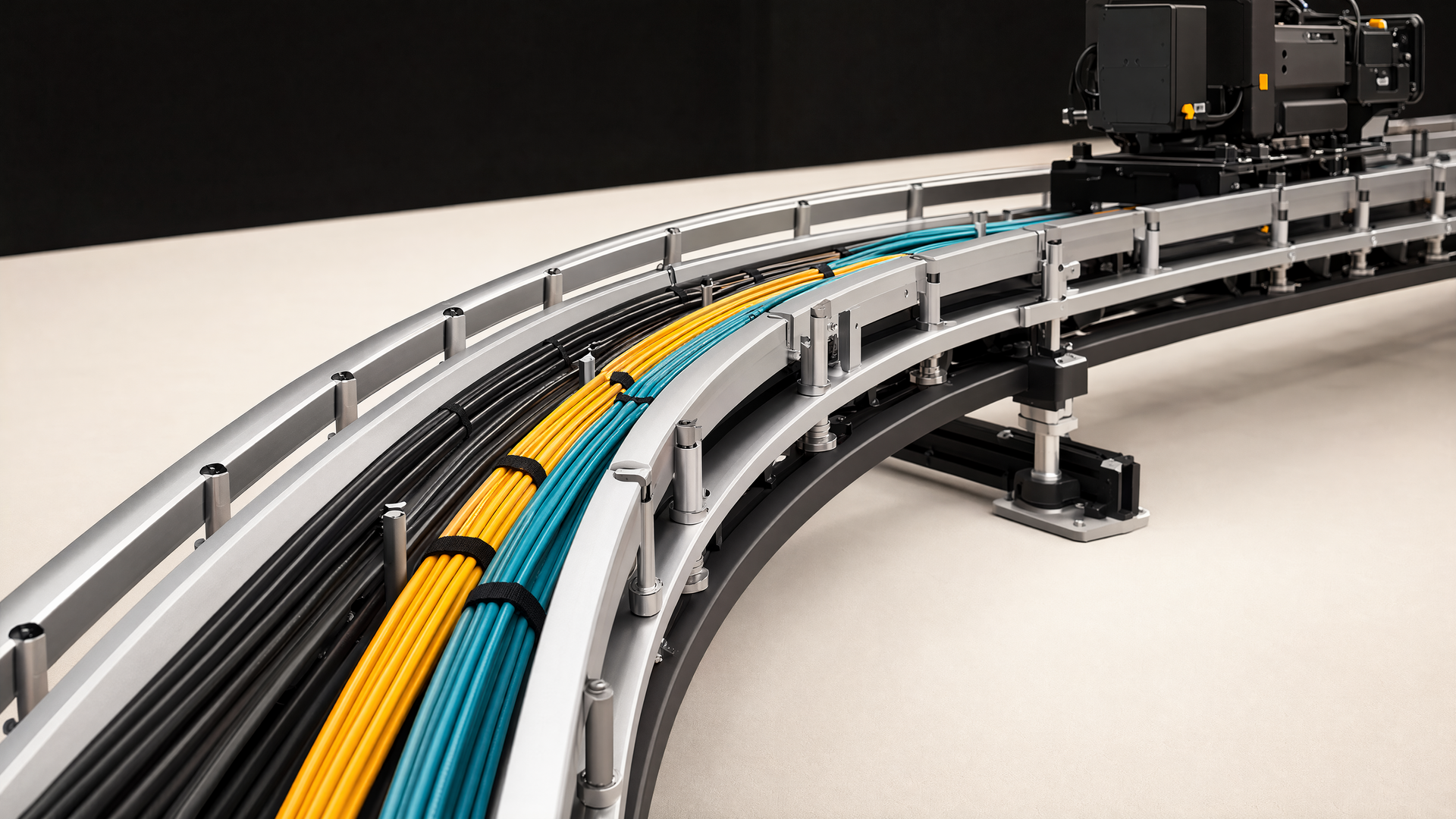

Cable spine
Route groups, split points, exits and service loops are agreed around the integrator's system.

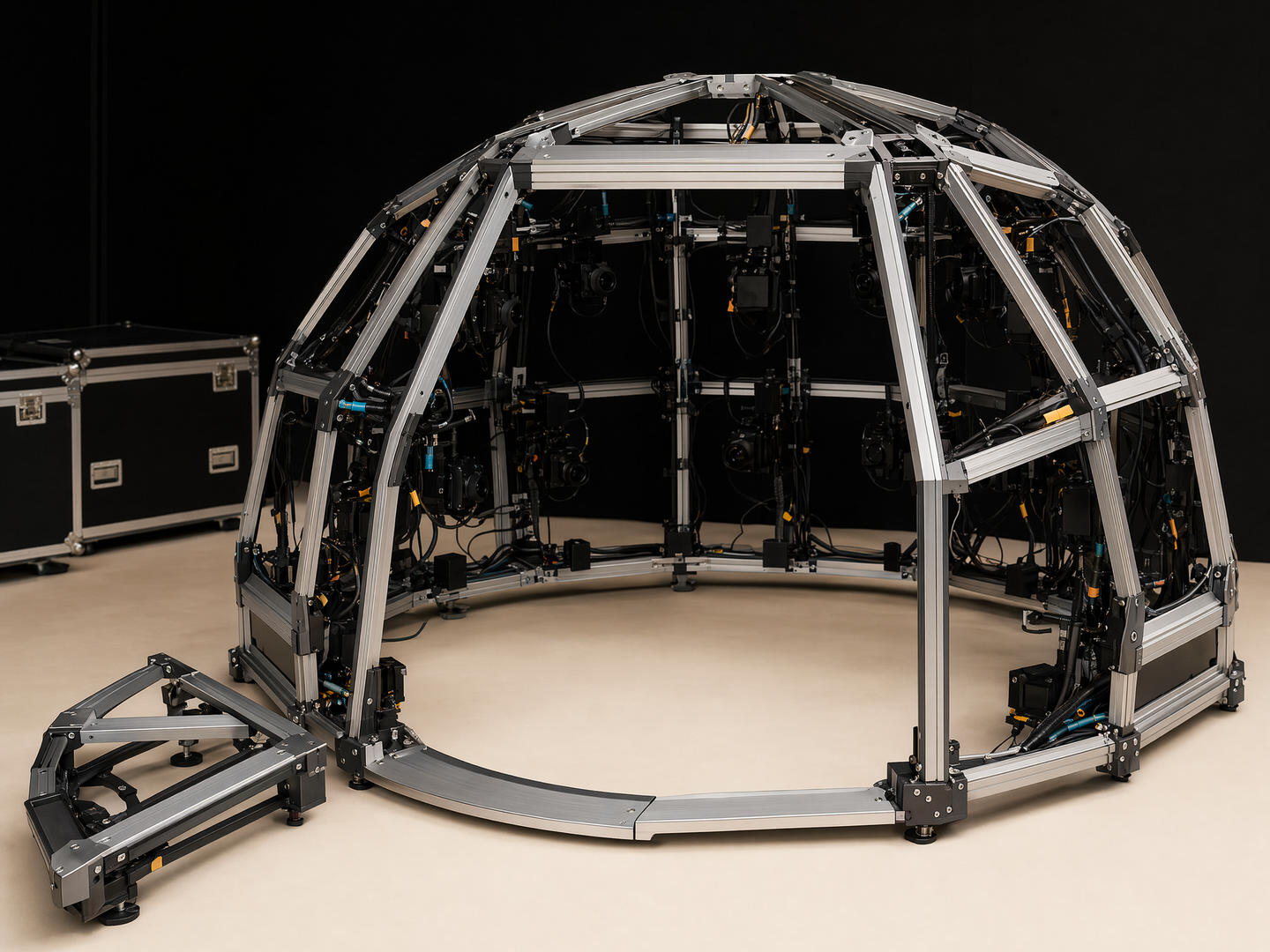

Service access
Openings, removable sections and working clearances are configured around cameras, people and the site.
04 / Pack and restore
Repeatability continues after the structure comes apart.
Module order, fastener groups, fitted cases and a restoration record turn a one-time assembly into a reusable structural package.

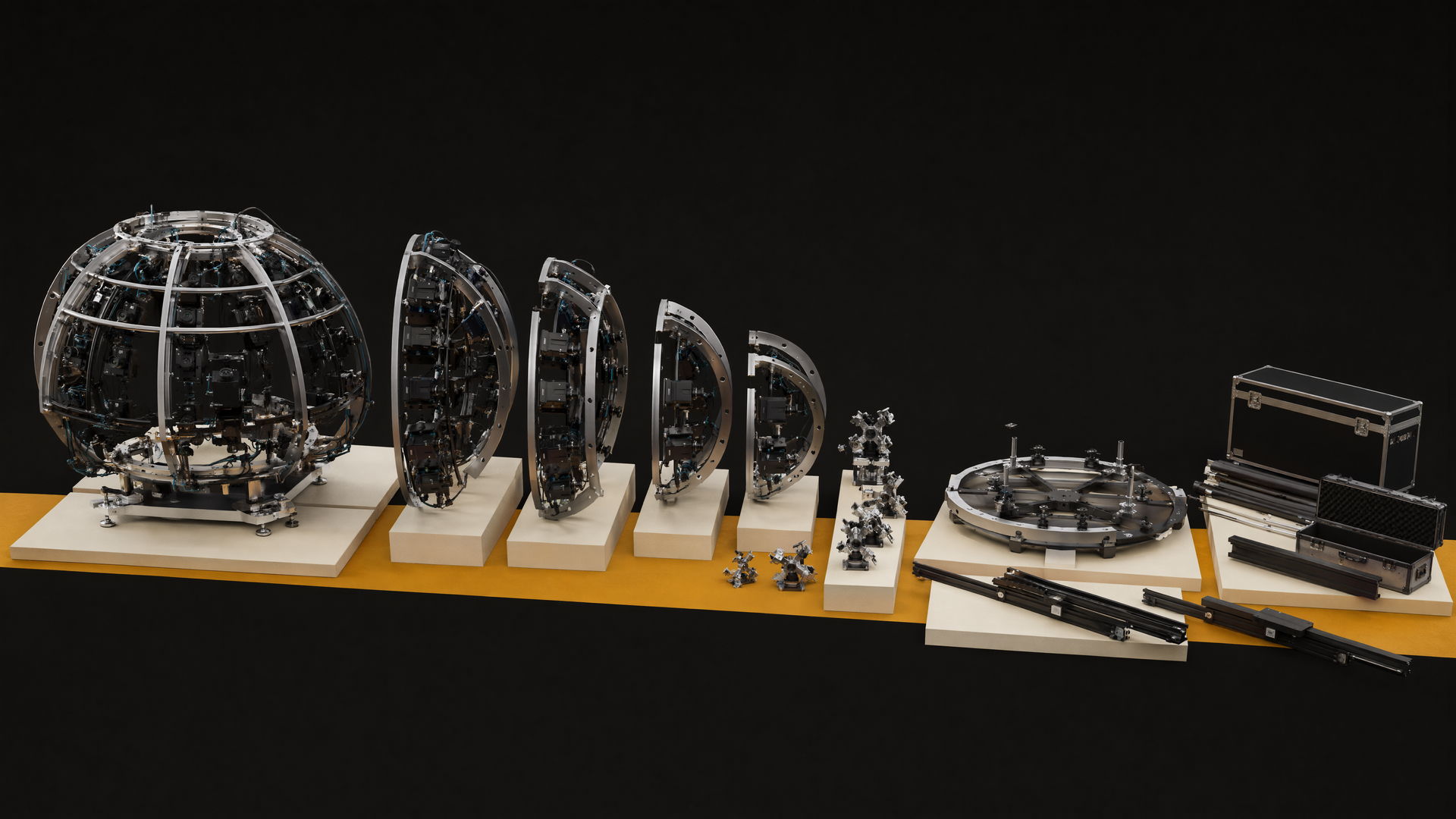

Separate
Break the geometry into repeatable modules.
Curved sections, rails, bases and hardware follow a planned physical order.

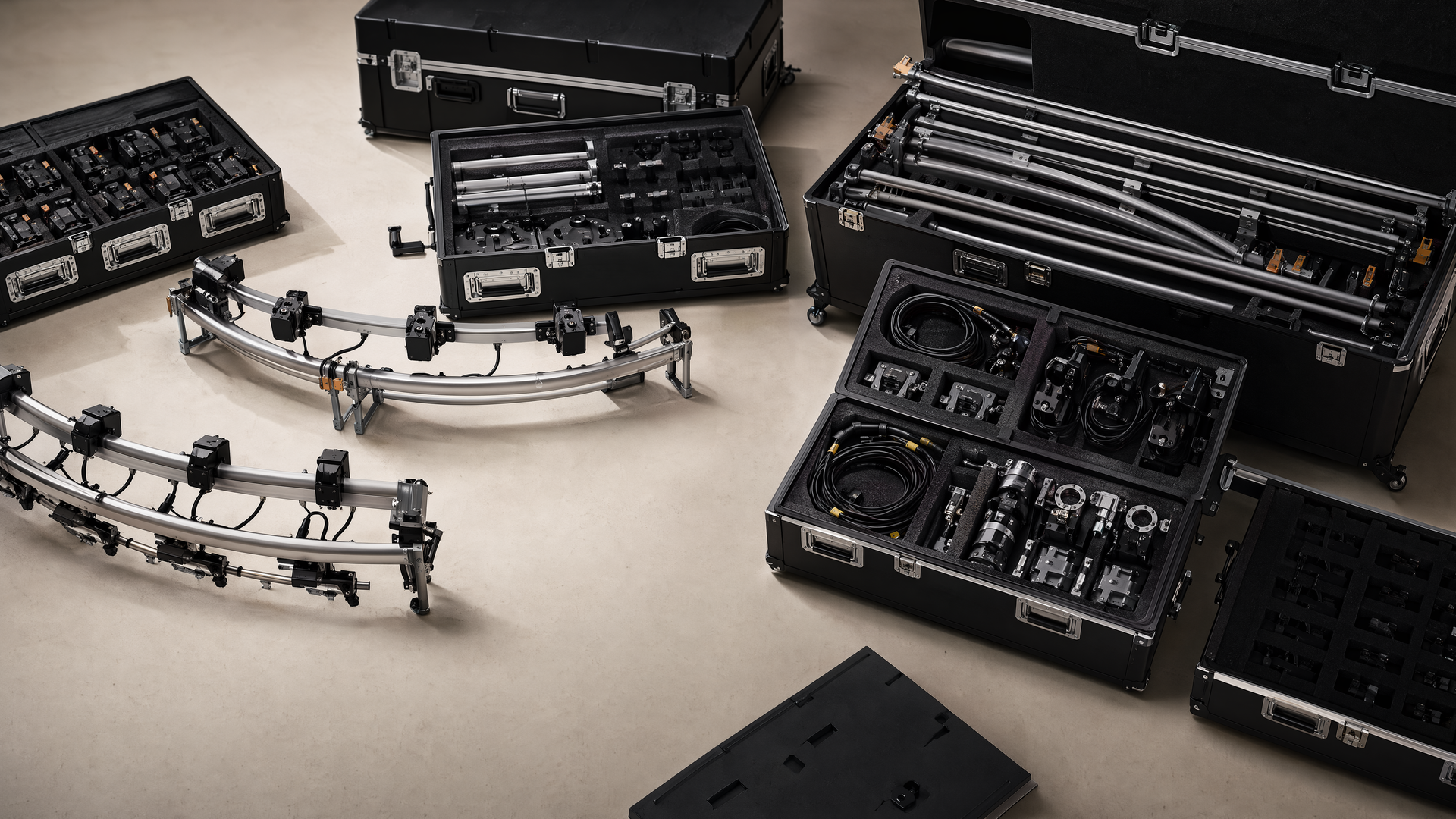

Pack
Protect modules and keep groups together.
Cases, trays and cable kits preserve the relationship between parts.

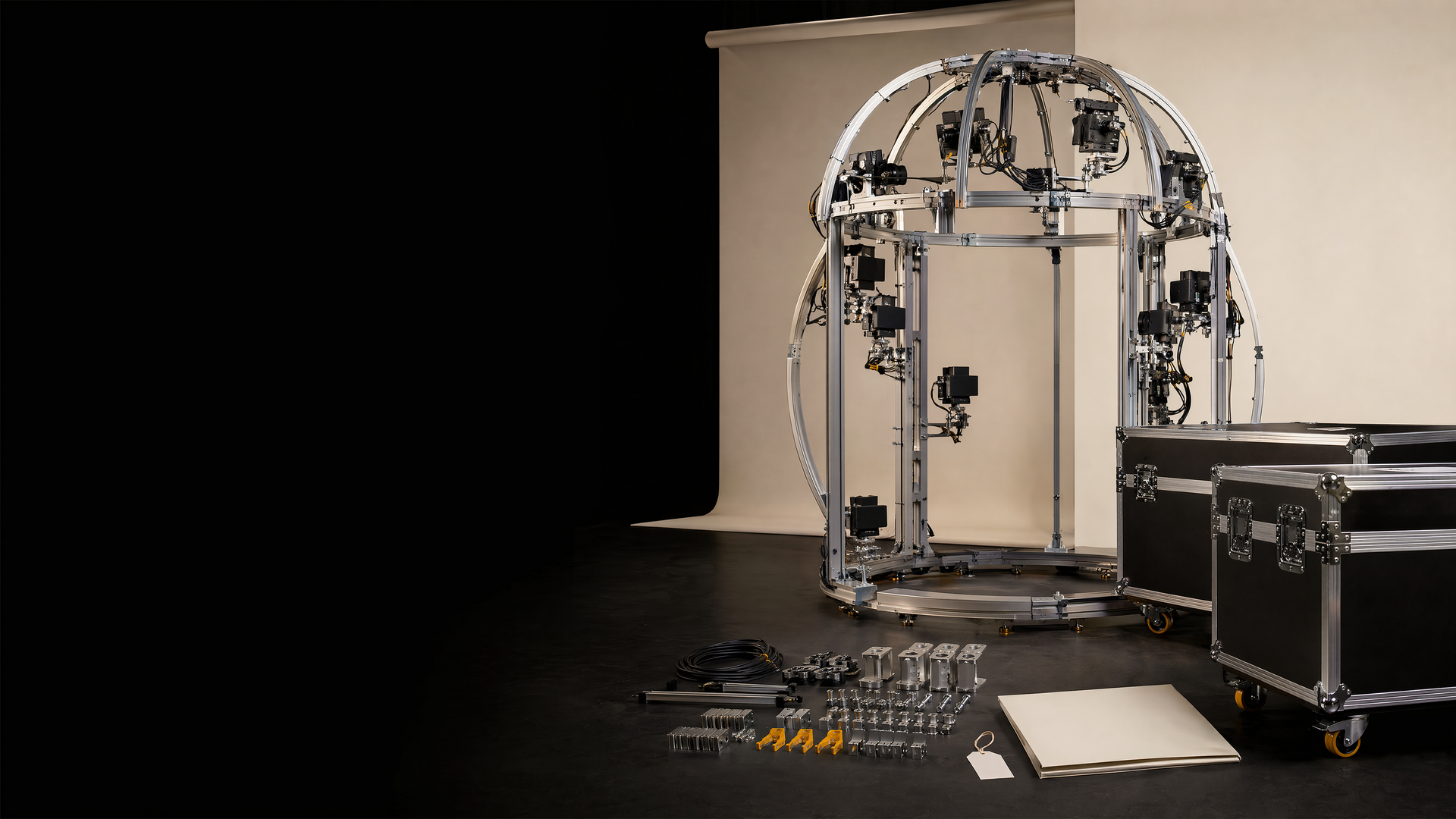

Restore
Return the structure to the agreed state.
The restored frame, empty cases, spare groups and handoff record stay connected.
StelMount scope
Physical structure package
Frame, camera nodes, cable provisions, service access, agreed stability parts, equipment support, pre-assembly, numbering, packing and restoration materials.
Customer or system integrator
Capture and imaging system
Camera and lens selection, triggering, synchronization, power and network design, calibration, reconstruction, software, final camera coordinates and imaging acceptance.
